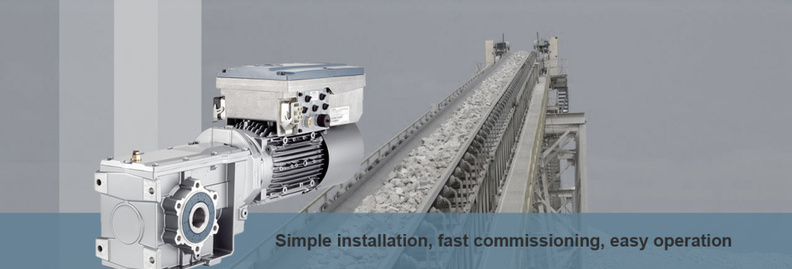

The distributed inverter for SIMOGEAR geared motors



Distributed SINAMICS G110M inverters belong to the SINAMICS G series. The distributed inverter in a high degree of protection (up to IP66) has a modular design, comprises a Control Unit and Power Module – and is designed to be used as an inverter integrated in SIMOGEAR geared motors and SIMOTICS GP motors.

It is extremely versatile, and the SINAMICS G110M is highly attractive as a result of its straightforward commissioning and highest degree of user-friendliness. In combination with SIMOGEAR, the devices are completely assembled and pre-commissioned.

Fast commissioning

• Pre-commissioned with SIMOGEAR

• Transmission of 24 V DC and 400 V AC and communication – no T connections required

• Internal braking resistors – typical applications can be implemented without external braking resistor

Fast commissioning on site

• Local commissioning via DIP switch and potentiometer, memory card, USB interface or Intelligent Operator Panel (IOP)

• Plug-in I/Os and communication; optional plug-in connections for 24 V DC and 400 V AC

• Uploading, storing and cloning of parameters with memory card and Intelligent Operator Panel

Full functionality

• Integrated safety functions (STO local via F-DI or via PROFIsafe)

• Integrated communication: USS, Modbus, PROFIBUS, PROFINET and Ethernet IP

• Basic PLC functionalities and additional conveyor functions

High degree of flexibility

• Integrated, specific software functionality

• Using the same software tools (STARTER / Startdrive) as all SINAMICS drives

• Fully integrated in Totally Integrated Automation, Totally Integrated Automation Portal and Integrated
