BAHR ELZA

Rack & Pinion driven

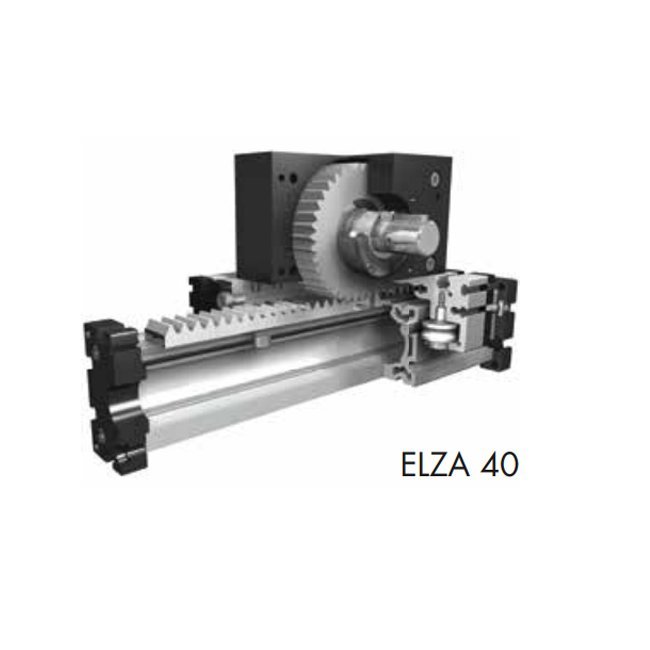

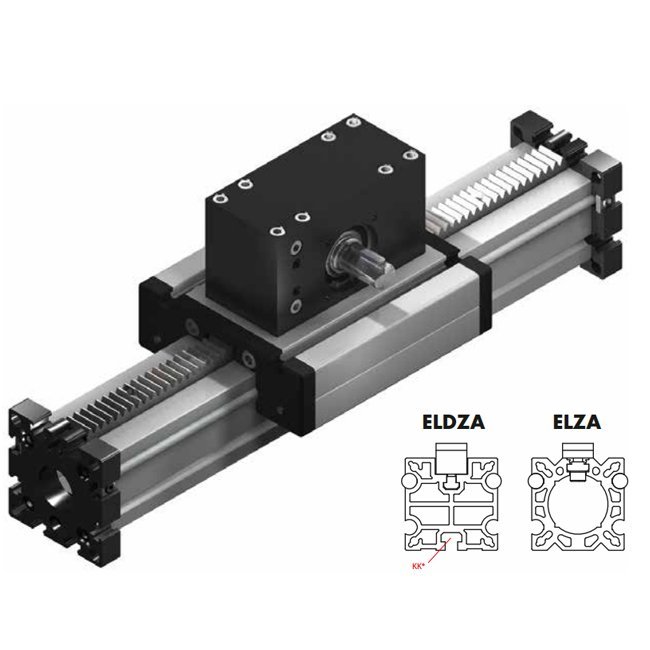

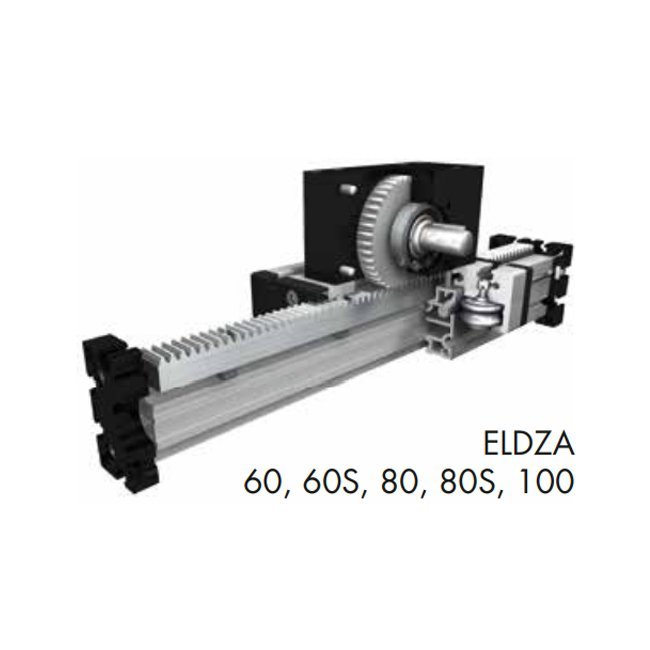

This unit consists of an aluminium square profi le with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven by a rack and pinion. The pinion is equipped with maintenance-free ball bearings.


Fitting position: As required. Max. length without joints 6.000 mm.

Carriage mounting: By T-slots.

Unit mounting: By T-slots and holes in the bearing blocks, mounting sets.

Rack: C45,Steel 1.4305 or plastic (PA 6) possible. Repeatability: ± 0,2 mm, Travel speed: max. 3 m/s

Overview
