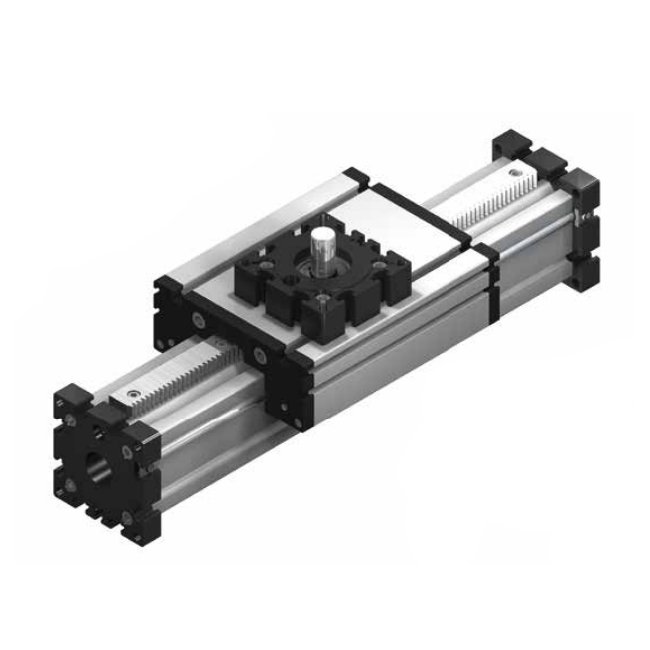

BAHR ELZQ
Special lifting unit with the function of ELZA. High dynamics and accuracy are achieved by a precision rack and pinion.

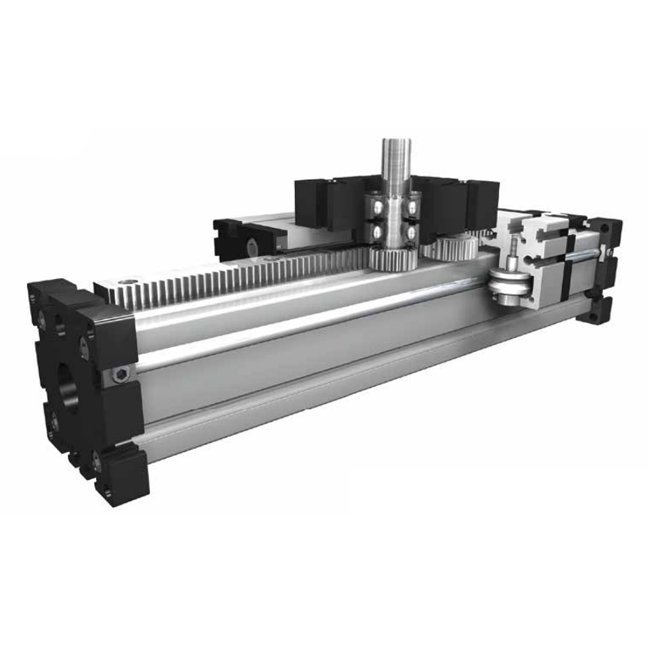

This unit consists of an aluminium square profile with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a high-precision rack. The rack and pinion system is suitable for highly dynamic servo operation and ideal for lifting movements. The pinion has maintenance-free ball bearings. The rack is lubricated by a toothed felt wheel.
Fitting position: As required. Max. Length without joints 6.000 mm.
Carriage mounting: By T-slots.
Unit mounting: By T-slots and holes in the bearing block, mounting sets.
Rack: Cf53; h6 hardened and ground; h7 = finely toothed. Repeatability: ± 0,1 mm. Travel speed: max. 3 m/s
