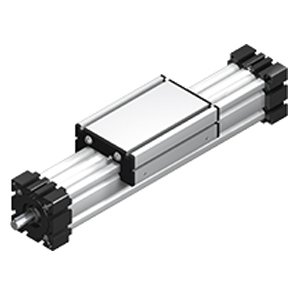

BAHR EGK

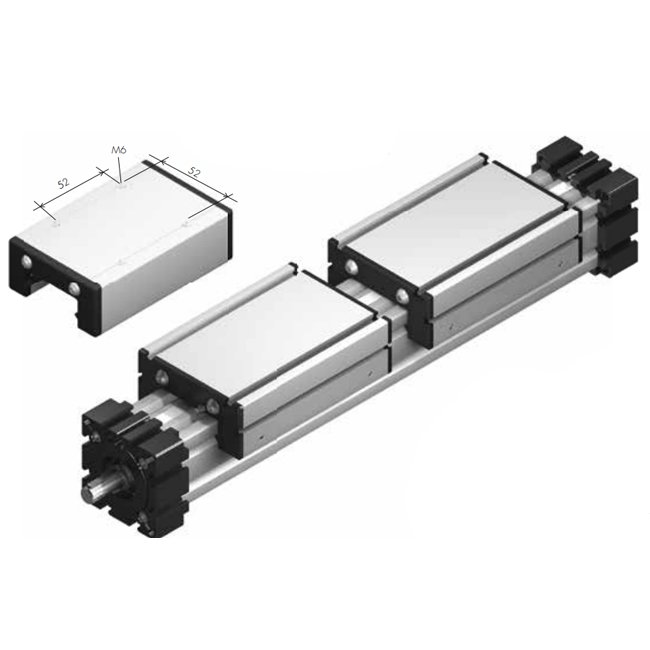

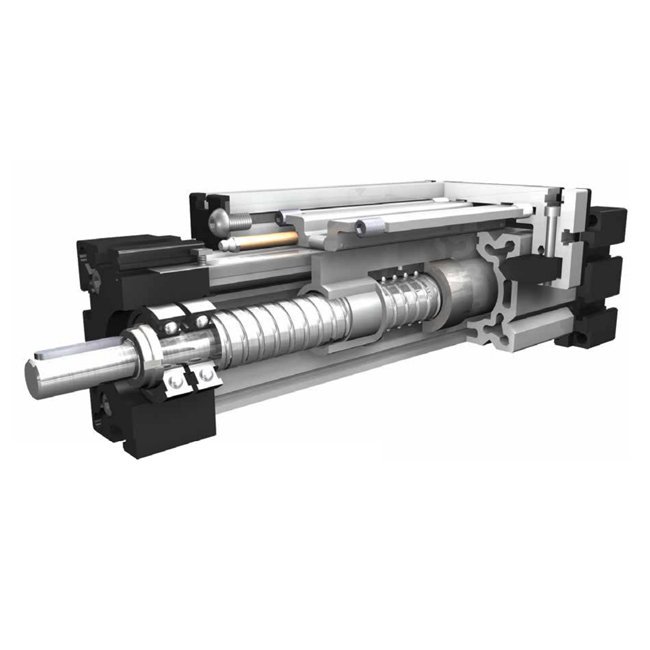

This unit consists of an aluminium square profile with lateral V-guides. The carriage, which is driven by means of a trapezoidal/ball screw threaded spindle with lead screw, moves along the unit guided by V-slides that are adjustable, free of play.

Where two linear units are used in parallel or where two carriages are mounted on one unit, the leading-nut receiver can be used to adjust the symmetry of the carriages. The linear opening of the unit is sealed with a stainless steel cover band to make the unit splash-proof and dust-tight

Fitting position: As required. Max. length 3000 mm

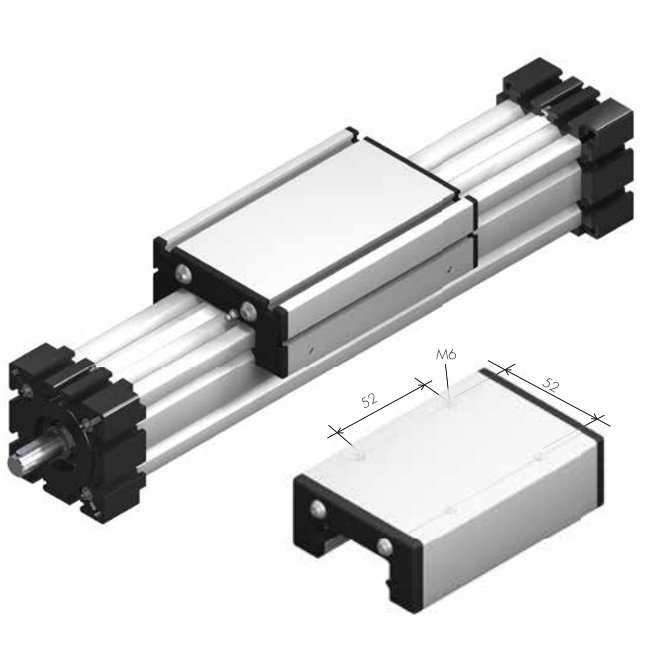

Carriage mounting: T-slots, tapped holes (size 40)

Unit mounting: By T-slots or tapped holes in the bearing block, mounting sets.
