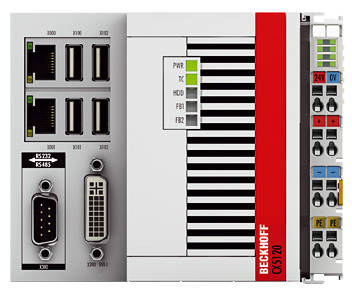

CX5120 | Embedded PC with Intel® Atom™ processor
The CX5120 has an Intel® Atom™ single-core processor with a clock rate of 1.46 GHz. The hardware interfaces in this new series are oriented and implemented identically to those of the existing CX5000 series. Two independent, Gigabit-capable Ethernet interfaces, as well as four USB 2.0 and a DVI-I interface are available. A multitude of further connection options or gateway functions are created by an option interface, which can be pre-fitted in the factory, as well as the I/O level, which can selectively consist either of E-Bus or K-Bus terminals.
The CX5120 is characterised by low power consumption and a fanless design.
Depending on the installed TwinCAT runtime environment, the CX5120 can be used for implementing PLC or PLC/Motion Control projects with or without visualisation. The execution of Motion Control applications with interpolating axis movements is also possible.
The extended operating temperature range from -25 to +60 °C enables the use in climatically demanding environments.
Like the CX5000, the CX5100 series has a compact design; a modular device with extension modules like in the CX2000 series is not available.

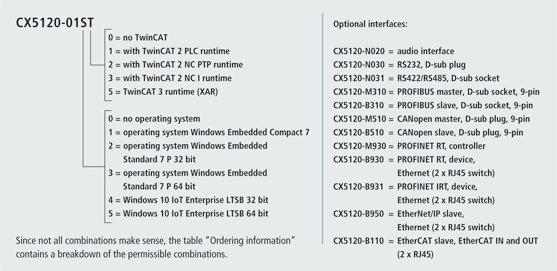

The order identifier is derived as follows:
| Technical data | CX5120 |
|---|---|
| Processor | Intel® Atom™ E3815, 1.46 GHz |
| Number of cores | 1 |
| Flash memory | slot for CFast card and for microSD card (cards are not included) |
| Internal main memory | 2 GB DDR3 RAM (not expandable) |
| Persistent memory | integrated 1-second UPS (1 MB on CFast card) |
| Interfaces | 2 x RJ45, 10/100/1000 Mbit/s, DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded Compact 7, Microsoft Windows Embedded Standard 7 P or Microsoft Windows 10 IoT Enterprise LTSB |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15 %/+20 %) |
| Current supply E-bus/K-bus | 2 A |
| Max. power loss | 9 W (including the system interfaces) |
| Dimensions (W x H x D) | 124 mm x 100 mm x 92 mm |
| Weight | approx. 860 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL, Ex, IECEx |
| TC3 performance class | performance (40); please see here for an overview of all the TwinCAT 3 performance classes |
