CX5140 | Embedded PC with Intel® Atom™ processor
CX5120, CX5130 and CX5140 are Embedded PCs from the CX5100 series based on the Intel® Atom™ multi-core processors. They differ from one another in housing width and CPU type. What is new is that the available Atom™ CPUs now also introduce genuine multi-core technology, extending up to quad-core, into the compact Embedded PC segment.
Since the new devices are an extension of the existing CX5000 series, they are equipped with identical hardware interfaces. Two independent Gigabit-capable Ethernet interfaces, as well as four USB 2.0 and one DVI-I interface, are available. A multitude of further connection options and gateway functions is created by the multi-option interface, which can be pre-equipped ex factory, as well as the I/O level, which can optionally consist of either E-Bus or K-Bus Terminals.
All devices in the series are characterised by low power consumption and a fanless design.
Depending on the installed TwinCAT runtime environment, the CX5100 can be used for implementing PLC or PLC/Motion Control projects with or without visualisation. The execution of Motion Control applications with interpolating axis movements is also possible.
The extended operating temperature range from -25 to +60 °C enables the use of the CX5100 Embedded PCs in climatically demanding environments.
Like the CX5000, the CX5100 series has a compact design; a modular device with extension modules like in the CX2000 series is not available.

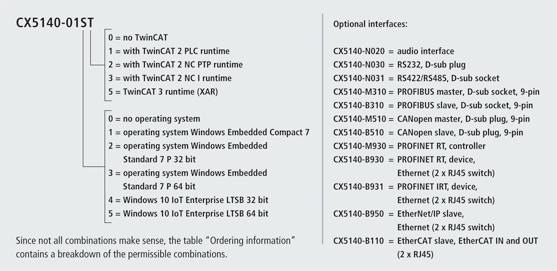

The order number of the basic CPU module can be derived as follows:
Overview
| Technical data | CX5140 |
|---|---|
| Processor | Intel® Atom™ E3845, 1.91 GHz |
| Number of cores | 4 |
| Flash memory | slot for CFast card and for microSD card (cards are not included) |
| Internal main memory | 4 GB DDR3 RAM (not expandable) |
| Persistent memory | integrated 1-second UPS (1 MB on CFast card) |
| Interfaces | 2 x RJ45, 10/100/1000 Mbit/s, DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded Compact 7, Microsoft Windows Embedded Standard 7 P or Microsoft Windows 10 IoT Enterprise LTSB |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15 %/+20 %) |
| Current supply E-bus/K-bus | 2 A |
| Max. power loss | 12 W (including the system interfaces) |
| Dimensions (W x H x D) | 142 mm x 100 mm x 92 mm |
| Weight | approx. 960 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL, Ex, IECEx |
| TC3 performance class | performance plus (50); please see here for an overview of all the TwinCAT 3 performance classes |
Brochures

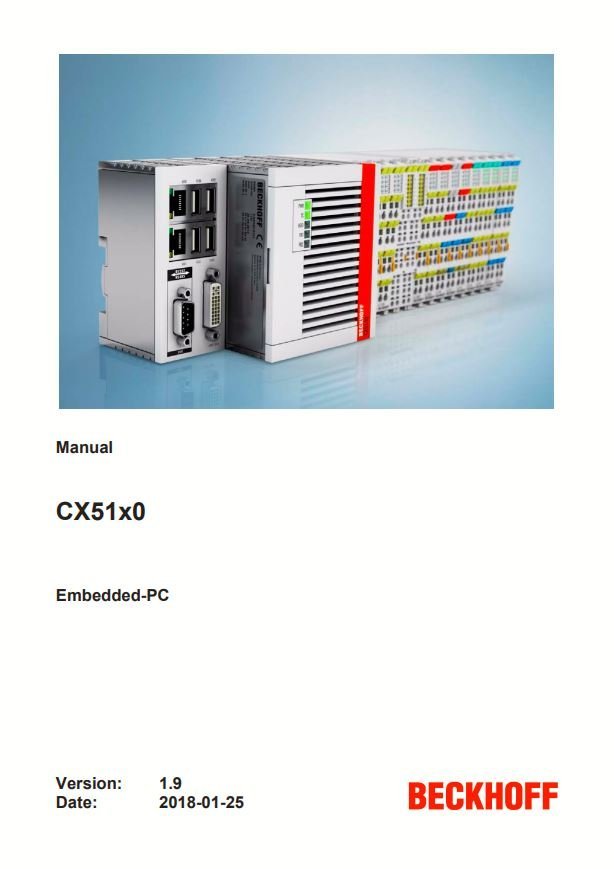

Manuals
