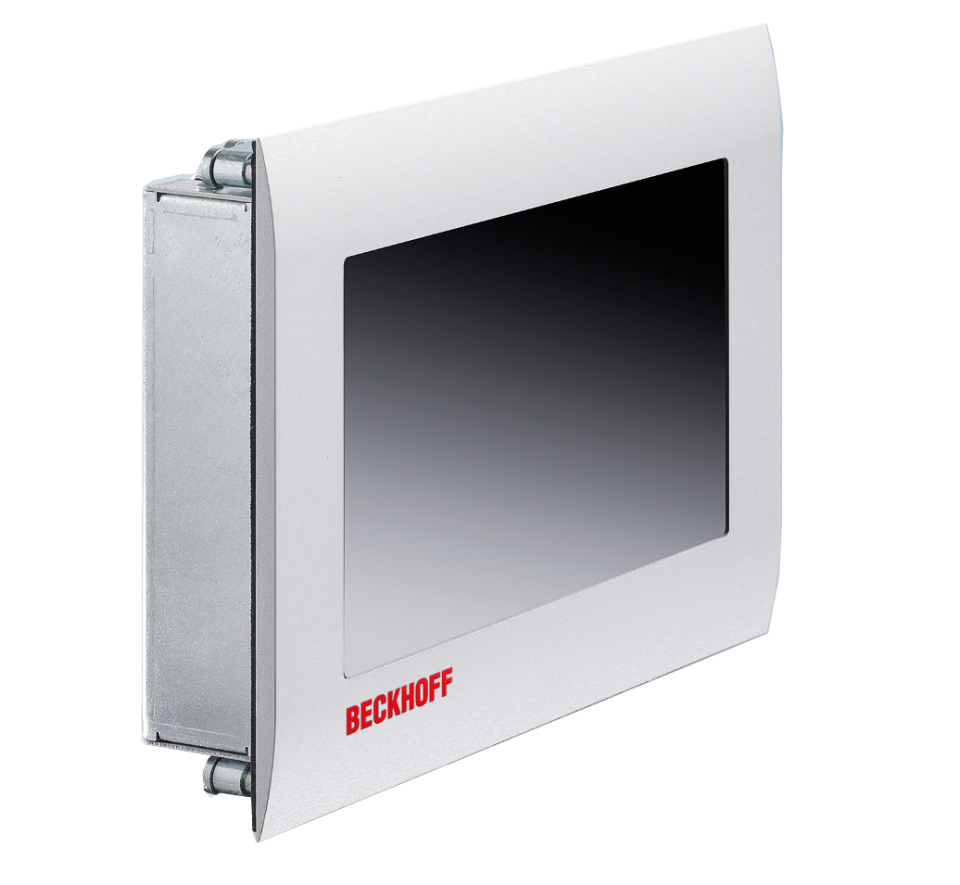

CP6606 | Panel PC with ARM Cortex™-A8
7-inch “Economy” built-in Panel PC
With its highly integrated 3½-inch motherboard, the CP6606 built-in Panel PC is ideally suited for use in machine construction and plant engineering, for example, with the TwinCAT automation software under Windows Embedded Compact 7 or as a CP-Link 3 client or Ethernet Control Panel.
The CP6606 is conceived for installation in front of a control cabinet and has a 7-inch touch screen display. Equipped with a fanless ARM Cortex™-A8 processor and a MicroSD card, the CP6606 contains no rotary components.
The CP6606 is supplied with a 24 V power supply unit. The microSD card and the lithium battery of the system clock are accessible from the rear in the connector bracket.
| Variants | Processor | Available |
|---|---|---|
| CP6606-0001-0020 | ARM Cortex™-A8, 1 GHz (TC3: 30) | Yes |
*The TwinCAT 3 performance class defines the exact ordering number for the respective TwinCAT 3 product. Please see here for an overview of the TC3 performance classes.
| Ordering information | With single-touch screen |
|---|---|
| Display only | |
| 7-inch display 800 x 480 | CP6606-0001-0020 |
