Siemens SINAMICS G120C

The compact and versatile inverter with optimum functionality

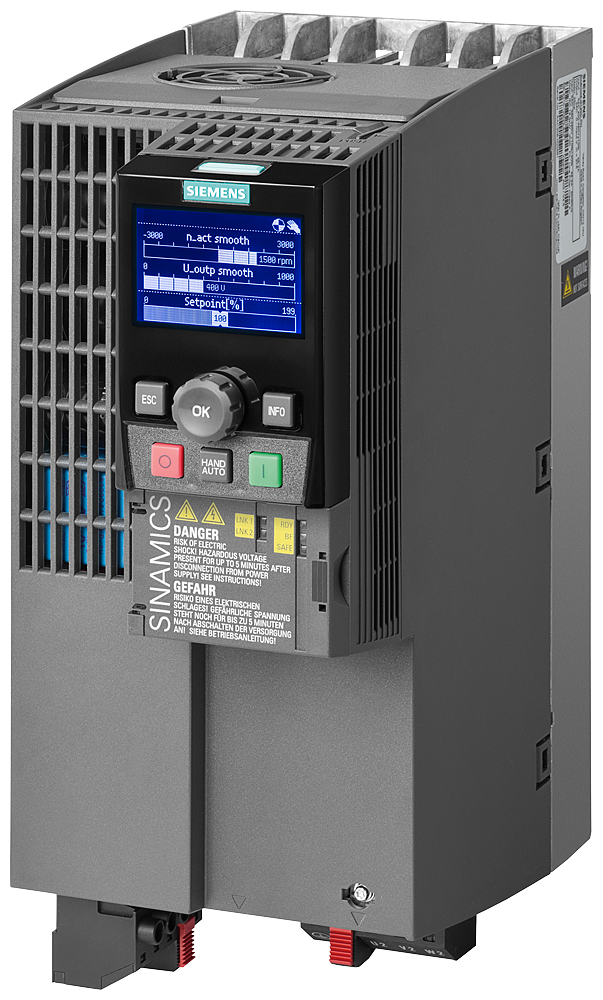

The SINAMICS G120C is especially compact with a high power density, and offers a well-balanced combination of functions to address a wide range of applications. With its seven frame sizes, it covers a performance range of 0.55 kW to 132 kW.

The three new frame sizes FSD (22 kW to 45 kW), FSE (55 kW) and FSF (75 kW to 132 kW) are a real highlight. Thus, compact devices are now also available for higher performance ranges up to 132 kW for operation within three-phase grids. (Available in the 1st. half of 2017)


  • Compact even in high performance ranges up to 132 kW
  • Integrated DC-line reactor and EMC filter
  • Side by side installation of all frame sizes without current or performance reduction


  • Full integration of the drives in the TIA Portal system diagnostics
  • The use of the TIA Portal library concept ensures the easy reusability of the converters, including the parameter and hardware components


  • Intuitive series commissioning, cloning function through BOP-2, IOP or SD card
  • Simple and fast software parameterization


Voltage3AC 380 … 480 V +10 % / –20 %
Power Range0.55 to 132 kW
Degree of protectionIP20
Environmental classClass 3C2, (3C3 with SIPLUS)
Ambient temperature–10° to 40° C without derating / up to 60° C with derating
EMCAccording to IEC 61800-3 up to Category C2
StandardsCE, UL, cUL, c-Tick
Safety TechnologySafety Integrated: Safe Torque Off (STO); controlled via terminals or PROFIsafe
CommunicationPROFINET, Ethernet/IP, PROFIBUS, USS/Modbus RTU
Control procedureU/f (linear, square law, FCC, ECO), vector control without encoder (SLVC)
FunctionsFixed velocity setpoint, PID controller, motor holding brake control
