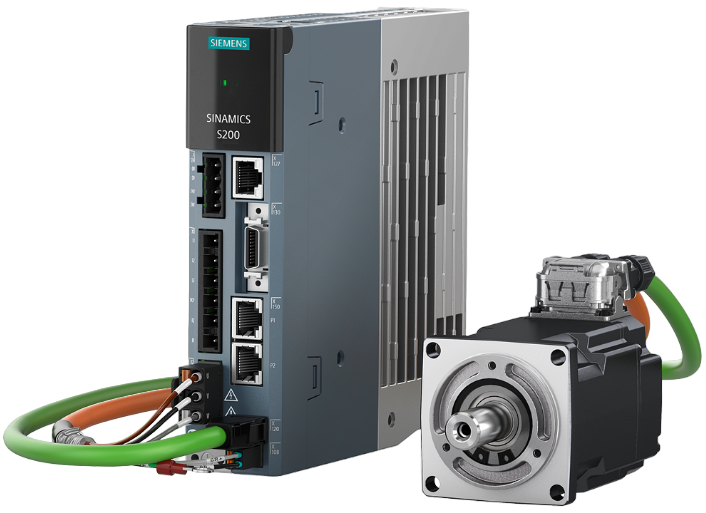

Siemens SINAMICS S200
The servo drive system

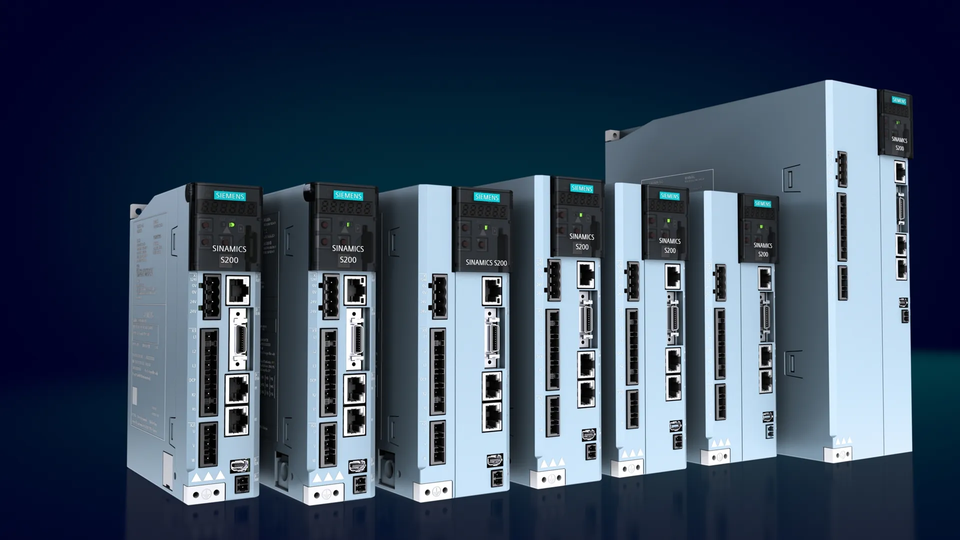

SINAMICS S200 with optimised performance and options for versatility
Integrating the servo drive into your existing system is a seamless experience. It consists of a basic version and a standard version with Pulse train (PTI) or PROFINET RT/IRT (PN) communication types to meet various needs of applications and works perfectly together with SIMATIC controllers.
Advantages
- Fast current controller with cycle time of 125µs (PN).
- Fast communication via PROFINET IRT
- 8KHz PWM frequency for reliable operation
- Reduced space requirement thanks to compact system design
- Optimised cost with an Integrated brake resistor and holding brake control
Optimised
- Response optimized with fast current controller cycle as well as PROFINET IRT communication to controllers
- Power optimized with up to 350% overload capacity
- Precision optimized with up to 21 bits high-resolution encoder
Cost-effective & Reliable
- Reduced space requirement thanks to the compact system design
- Easy control with integrated holding brake control and brake resistor
- Easy engineering via Webserver and SINAMICS Startdrive
- Easy implementation with global standards and certifications
Easy to use
- Fit for your applications via flexible hardware solutions and complete TIA offering
- Fit for digitalization on machine simulation with SINAMICS DriveSim.
- Fit for your security needs by providing reliable protection and secure access to your automation processes.
| Power Range: | 200 V ... 240 V 1/3 AC 0.1 kW ... 1 kW 380 V ... 480 V 3 AC 0.2 kW ... 7 kW |
Current Controller Cycle | 125 μs for PN |
EMC Category: | C2 with external line filter |
Brake Resistor: | Integrated brake resistor (>0.1kW) |
Holding Brake: | Direct control of motor holding brake |
Overload Capacity: | Max. 350% (up to 0.75kW); Max. 300% (up to 7kW) |
Safety Functions: | STO via terminal (SIL 3/ PLe) |
Commissioning/Engineering | Web server / SINAMICS Startdrive |
Certifications: | CE, cULus, RCM, EAC, KC, UKCA |
Motor Range: | SIMOTICS S-1FL21 Low inertia SIMOTICS S-1FL22 Medium inertia SIMOTICS S-1FL23 High inertia |
Toque Inertia: | Mn: 0.16 – 33.4Nm |
Encoder Systems: | Absolute encoder single turn 17 bit/21 bit |
Degree Of Protection: | IP65 (for shaft height 20/30/40 is IP54, IP65 as an option) |
Motor Connection Options: | Standard cable, flexible cable |
Motor Connection Technology: | One-push-lock motor connection for low and medium inertia motors |
Scalable System: | SIMATIC S7-1200 |
