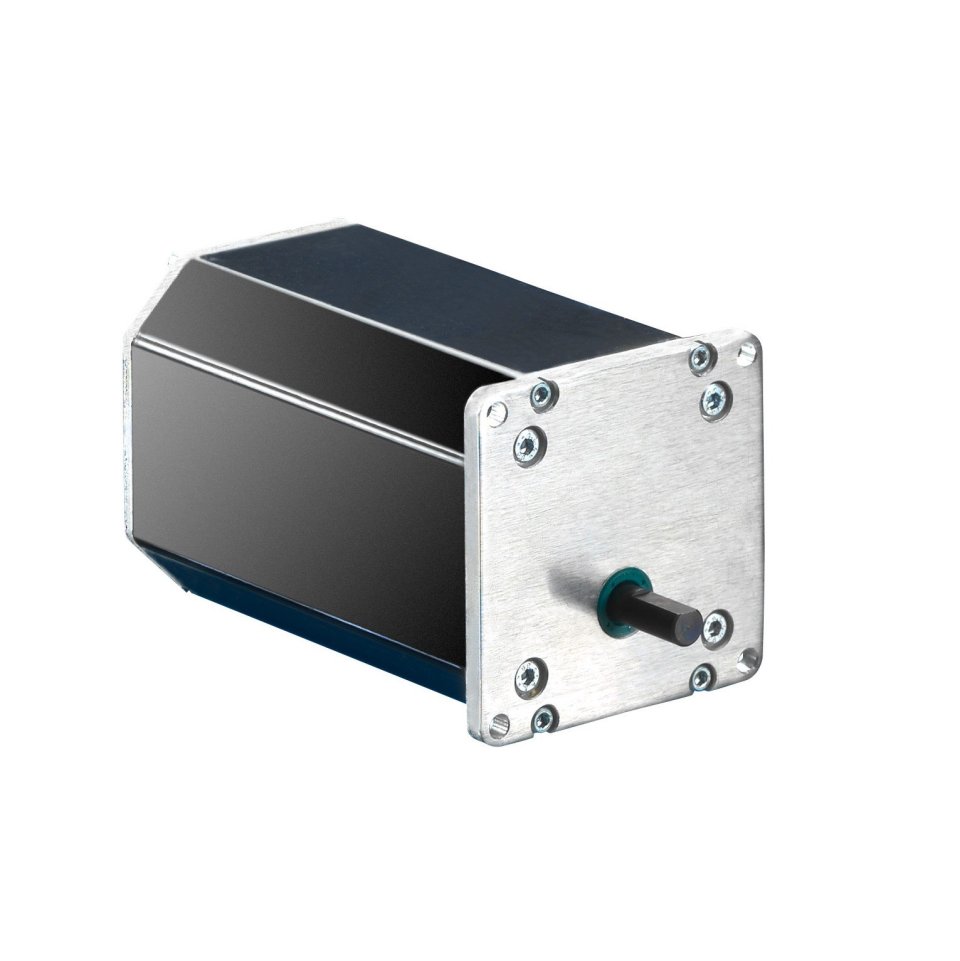

PSE 272 Positioning System
Positioning system with analogue setting of target value in a solid aluminium housing with IP 65
Special features
- Solid aluminium housing with IP 65
- Permits use in challenging environments
- Release-input ensures high level of functional security
- Positioning range with up to 15 rotations
The PSE 272 positioning system is a complete system consisting of an actuator and a closed loop with a torque of up to 5 Nm. The target value is predefined via an analogue signal. The position is measured via an absolute measuring system and up to 15 rotations are possible. A release-input ensures additional security during positioning.
Catalogue excerpt / Data sheets
| Nominal torque / Nominal rated speed | PSE 272/1: 1 Nm / 60 rpm PSE 272/2: 2 Nm / 30 rpm PSE 272/3: 4 Nm / 15 rpm PSE 272/4: 5 Nm / 7.5 rpm |
| Default analogue target value | 0 .. 10 V, 0/4 .. 20 mA |
| Positioning accuracy | 2% of positioning range |
| Output shaft | 8 mm solid shaft |
| Positioning range | max. 15 rotations |
| Supply voltage | 24 VDC |
| Protection class | IP 65 |
