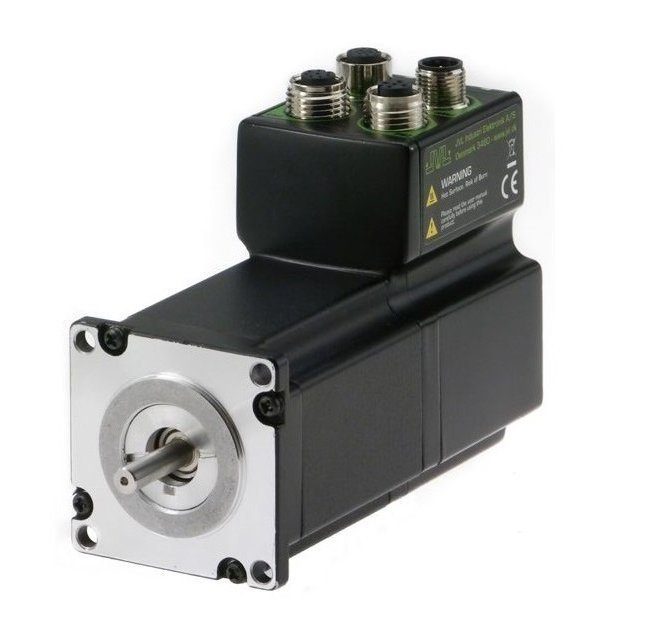

MIS231-MIS234 Quickstep

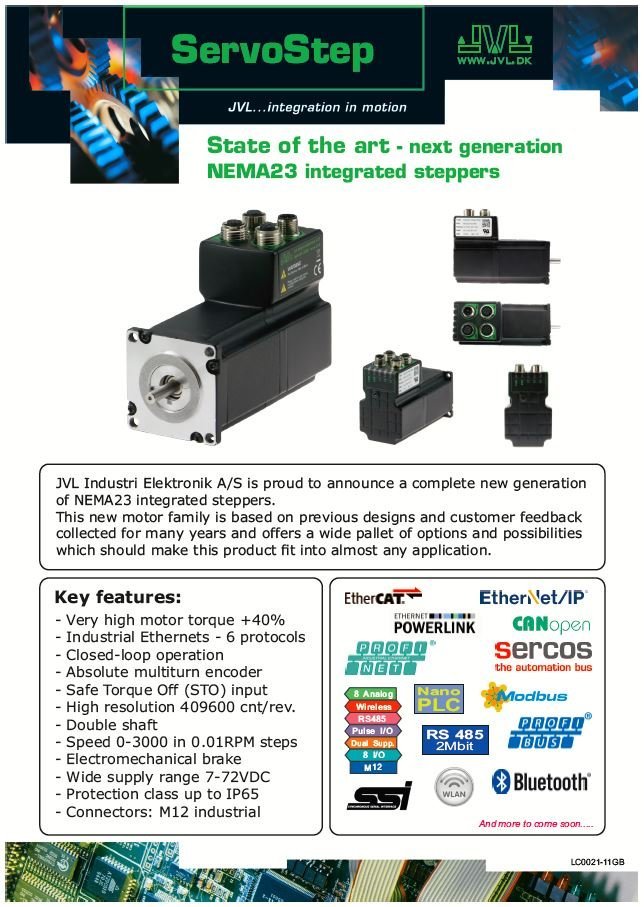

NEMA23 Programmable Integrated ServoStep Motors with Closed-Loop, Ethernet, Multiturn encoder.

A wealth of possibilities in a NEMA23 series of the world´s most compact stepper motors with the highest microstepping resolution, closed-loop 3000RPM and up to 3.1Nm.

Available with standard steppermotor or new hybrid steppermotor technology with rare earth magnets in rotor giving +40% more torque in same size.

Details:

Closed-Loop Operation
Real Torque Control Mode
PLC build in
Absolute Encoder
Top or rear end M12 or M23 connector
409600 step/rev
High Resolution Encoder
Operation Control Modes

Optional:

STO connector
Double Shaft & Rear brake
CANopen
Industrial Ethernet
Wifi/BT, Wireless Ethernet

	Running Torque	Length	Shaft	Power Watt @72VDC*	Weight	Connector	Available
	[Nm]*	[mm]	[mm]		[kg]
High torque

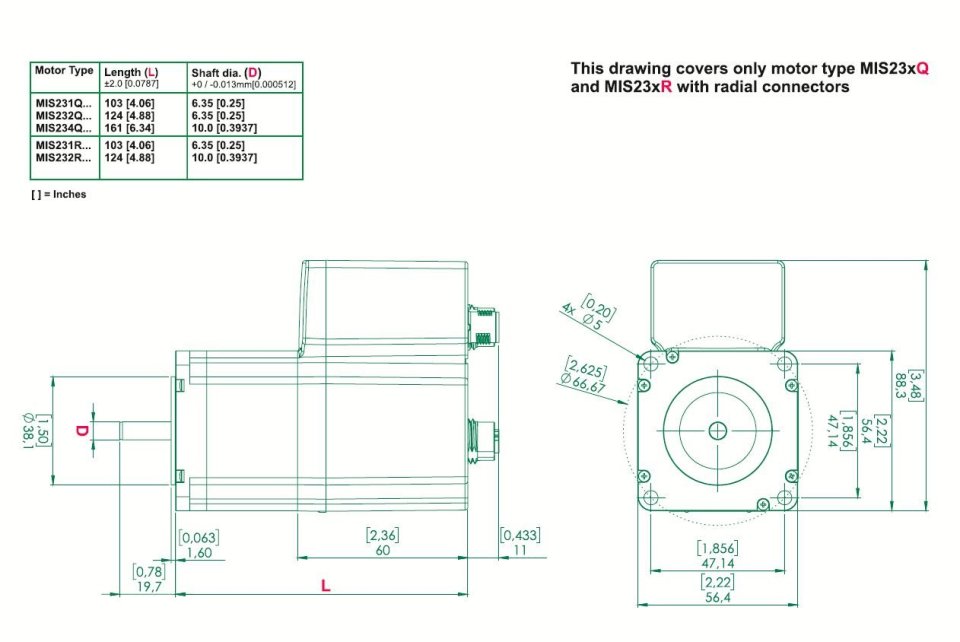

MIS231Q	1	103 ±1.0	6.35	177	1.1	Axial	Jul-17
						(rear end)
MIS232Q	2	124 ±1.0	6.35	221	1.4	Axial	Jul-17
						(rear end)
MIS234Q	3.1	161 ±1.0	10	212	2	Axial	Jul-17
						(rear end)

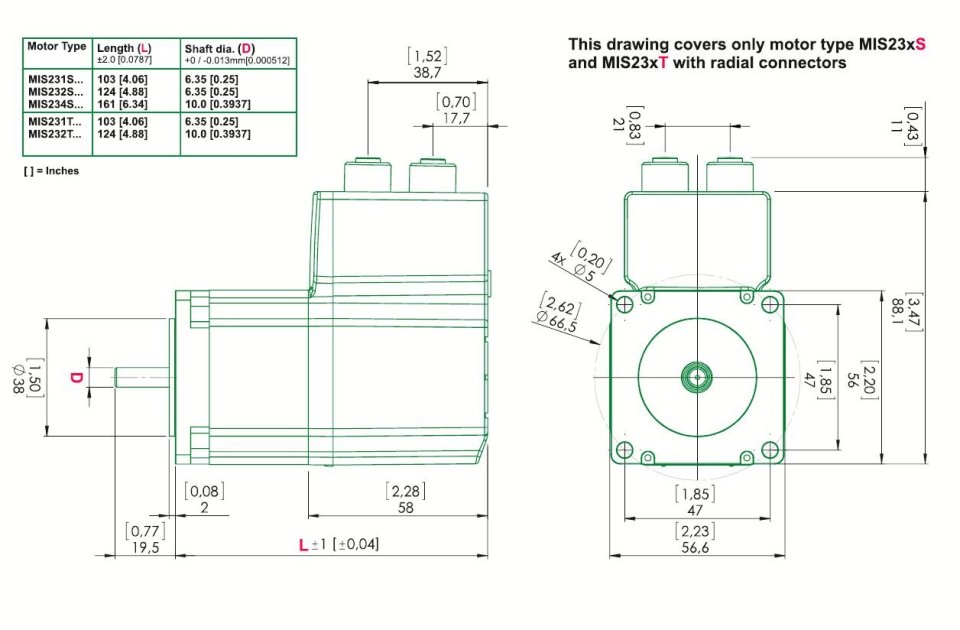

MIS231S	1	103 ±1.0	6.35	177	1.1	Radial	Jun-17
						(top side)
MIS232S	2	124 ±1.0	6.35	221	1.4	Radial	Jun-17
						(top side)
MIS234S	3.1	161 ±1.0	10	212	2	Radial	Jun-17
						(top side)
Ultra high torque
MIS231R	1.2	103 ±1.0	6.35	198	1.1	Axial	Jul-17
						(rear end)
MIS232R	2.5	124 ±1.0	10	316	1.4	Axial	Jul-17
						(rear end)
MIS231T	1.2	103 ±1.0	6.35	198	1.1	Radial	Jun-17
						(top side)
MIS232T	2.5	124 ±1.0	10	316	1.4	Radial	Jun-17
						(top side)
