Atlanta Precision Racks: PR


Quality Class 8

Technical Data:

  • Heat-treatable, bright steel according ATLANTA-Standard performance
  • Teeth hardened with the ATLANTA high
  • hardening process and ground
  • Total pitch error GTf/1000 ≤0,060mm
  • 19°31'42" helical and straight tooth system
  • Module 2 to 5
  • Max. feed force per pinion contact up to 64,5 kN


  • Bright steel, backside machined
  • Milled teeth, quenched and tempered
  • Total pitch error GTf/1000 ≤0,100mm
  • 19°31'42" helical and straight tooth system
  • Module 2 to 4
  • Max. feed force per pinion contact up to 27 kN

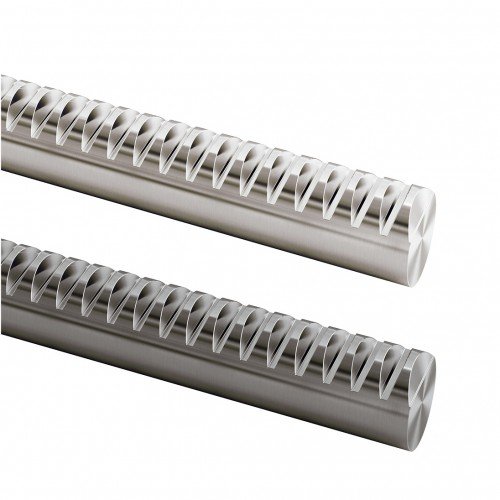

Stainless Steel Round Racks


Quality Class 8

Technical Data:

  • Material: X8 Cr Ni 18-9
  • Stainless
  • Profile drawn
  • Total pitch error GTf/1000 ≤ 0,015mm
  • Module 1 to 3
  • Length 1000 mm
  • Max. feed force per pinion contact up to 5,6 kN



Overview

Class Rack Type Quality
Total pitch
error
( ±µm/m)
Applications
helical
toothed
straight
toothed
Precision
Rack
( PR)
hardened
ground
8 60
Portals
Handling
Linear axes
Series 39 Series 34
milled
quenched +
tempered
8 100 Series 38 Series 33
