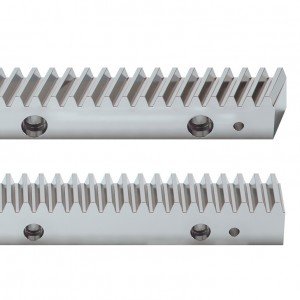

Atlanta Ultra High Precision Racks: UHPR

Q3 - Quality Class 3

Technical Data:

• Heat-treatable steel according ATLANTA-Standard
• Teeth hardened with the ATLANTA high performance
  hardening process and ground
• Ground on all sides after hardening
• Signed with effective total pitch error (20°)
• Total pitch error GTf 1000 ≤ 0,012mm
• 19°31'42" helical and straight tooth system
• Module 5 to 12
• Length up to 1000mm
• Max. feed force per pinion contact up to 409,0 kN

Q5 - Quality Class 5

StrongLine

Technical Data:

• Case hardening steel according ATLANTA-Standard
• Teeth case hardened and ground
• Ground on all sides after hardening
• Signed with effective total pitch error (20°C)
• Total pitch error GTf/1000 ≤ 0,026mm
• 19°31'42" helical and straight tooth system
• Module 3 to 6
• Length 1000 mm
• Max. feed force per pinion contact up to 131,5 kN
