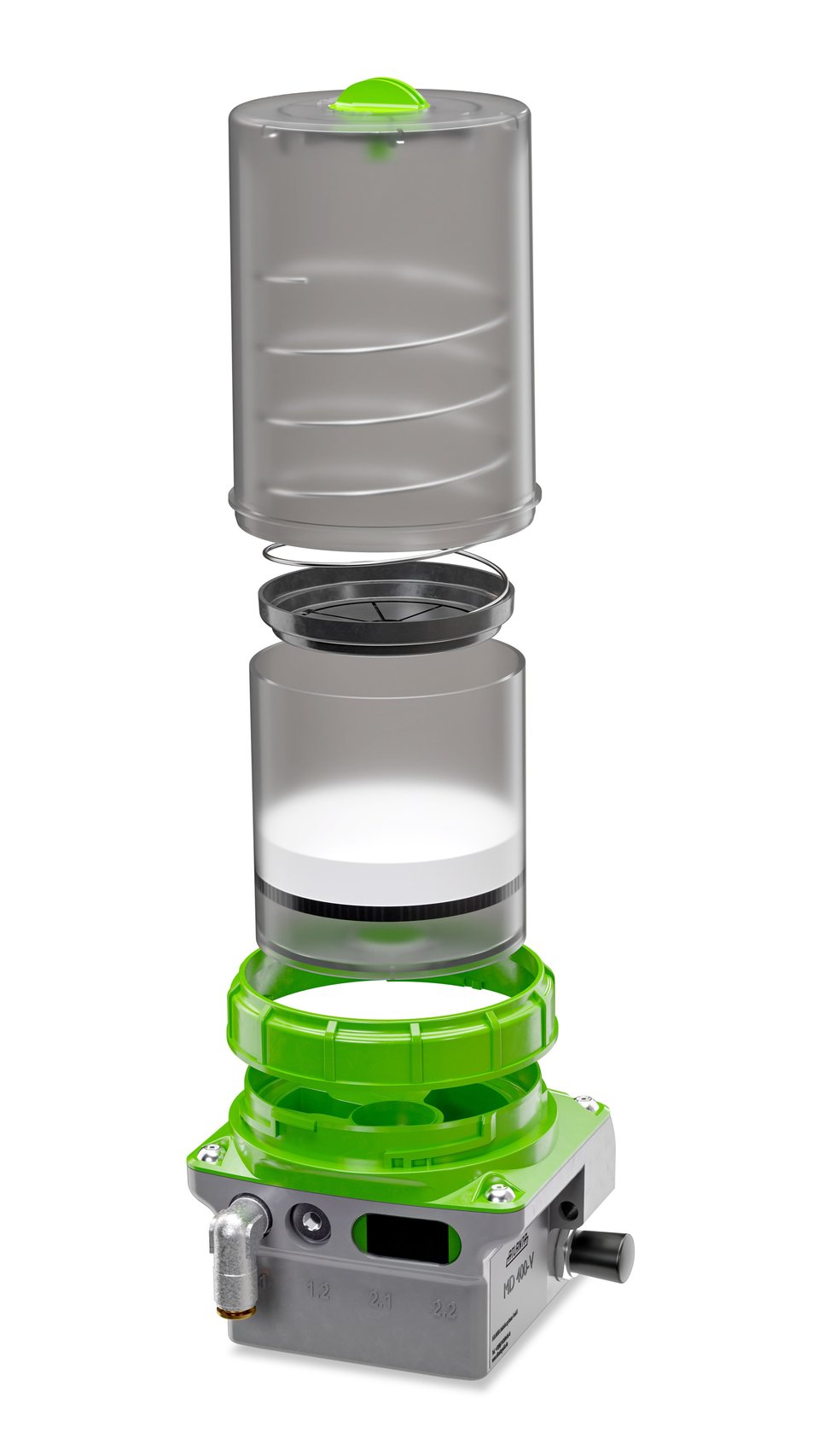

Type MD400

The single/multipoint- lubrication system type MD400 is a reliable and easy-to-use electronic lubrication system. With its precise conveyor technology, this system is suitable for automatic lubrication of roller and sliding bearings, racks, open gears, chains, ball screws, spindle drives and much more.
The type MD400 lubrication system opens a new door in the world of automatic lubrication. With the extremely versatile MD400 lubrication system, both individual lubrication points and a whole group of different types of lubrication points can be continuously and safely supplied with lubricant over a long period of time.

TypeMD400 - flexible lubrication

The lubrication system type MD400 is an extremely compact and powerful lubrication unit for oils and greases up to NLGI class 2. The lubrication system works either autonomously with a battery pack (3V) or via an external power supply (24V DC).
Due to its compact dimensions, type MD400 is ideally suited for retrofitting in many applications.

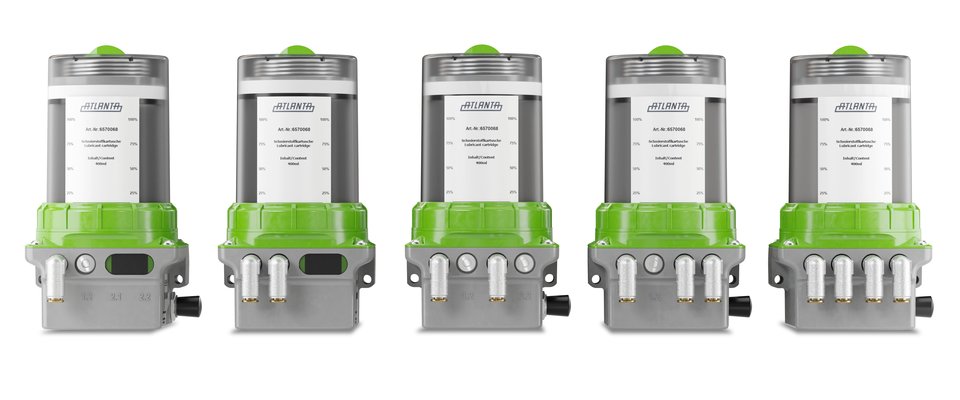

Variants of the Type MD400

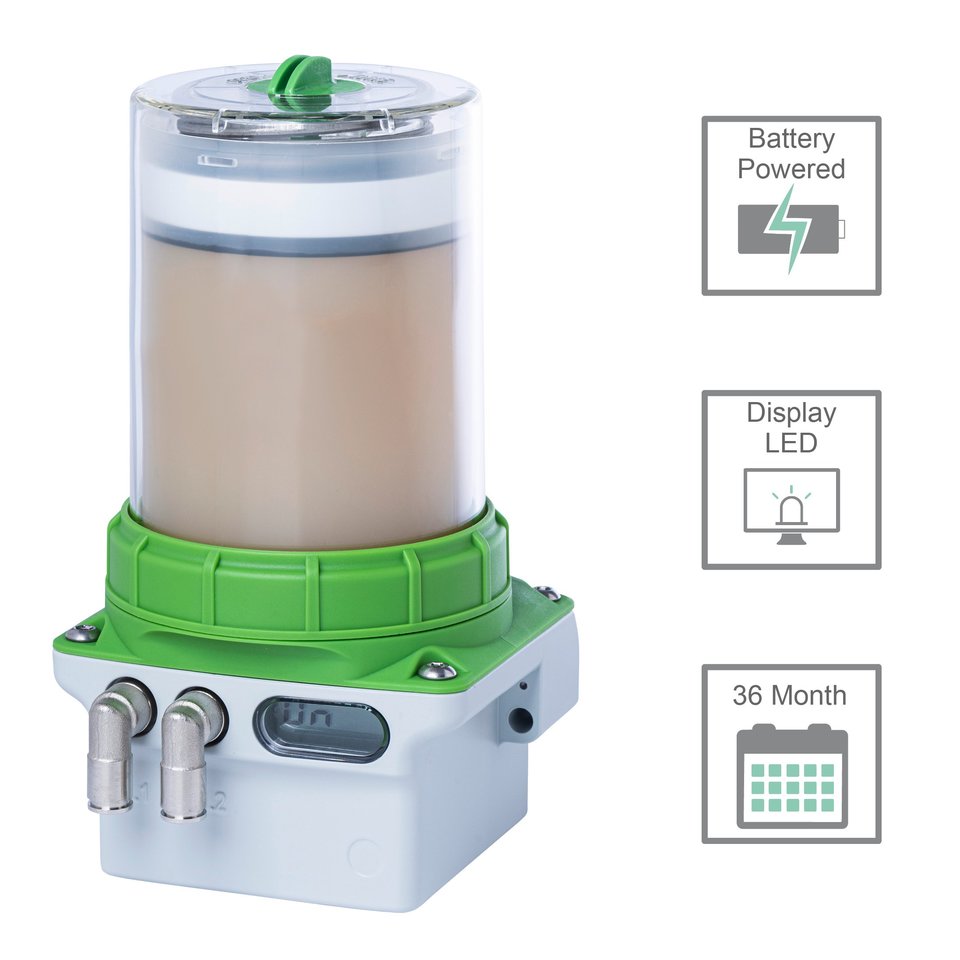

MD400B

The battery-operated variant of the MD400 lubrication system is always used when a self-sufficient operation is desired or necessary. The highly-efficient battery pack can optionally be sent to empty the lubricant cartridge over a period of 1-36 months.

1 or 2 outlets, 70 bar (1015 psi) supply pressure
LCD-Display with LED
Quick-Check (back-pressure readings

MD400D

MD400D is designed for external control and a 24 VDC voltage supply. Depending on the model, the MD400 lubrication system type D has 1,2, 3 or 4 outlets. Connection to the PLC is required.

1, 2, 3 or 4 outlets, 70 bar (1015 psi) supply pressure
Flexible, individual control by PLC
Exact control and lubricant dosage
Feedback to the connected unit

The advantages of Type MD400

Precise, reliable delivery of lubricant
Battery operation, voltage supply 24V or connection to the machine control system
Delivery pressure up to 70 bar (1015psi)
Dispensing period 1-36 months
Synchronisation with the machine operating time is possible
Operating temperature -15 °C to +70 °C
Visual warning of malfunction (LED and display)
Vacancy report
Flow rate independent of temperature
Visual inspection of the fill level is possible at any time
Connection of the hose line is possible
Delivery of oils and greases up to NLGI-cl. 2
Special fillings available

MD400V

The 24V variant of the MD400 lubrication system is always the right choice when a power supply can be simply attached. The MD400 V strengths become particularly apparent during discontinuous operations.
