Atlanta High-Torque (HT) Servo Reducers


This standard range of Servo Reducers are perfect for use in applications that demand high performance, precise positioning and repeatability. They were specifically developed for use with state-of-the-art servo motor technology, providing tight integration of the motor to the unit. Angular backlash of less than 1 arc-minutes is provided standard.

They are available in four sizes (50 mm to 100 mm center distance) with input speeds up to 5,000 rpm, reduction ratios from 4.75 to 52:1 and output torque capacities up to 1700Nm. A wide range of motor couplings and mounting flanges are available for assembly to virtually all servo motors, and the hollow bore output can be used to mount output shafts, pinion shafts, or other drive elements.

Typical applications for these reducers include precision rotary axis drives, traveling gantries & columns, material handling axis drives, zero-backlash axis drives and electronic line shafting. Industries served include Material Handling, Automation, Aerospace, Machine Tool and Robotics.



The following are typical features of our HT-Servo Gear Units:

  • Backlash: <1 arcmin, adjustable
  • 4 sizes: centre distance 50, 63, 80 and 100mm
  • 8 ratios: 4.75; 6.75; 9.25; 14.5; 19.5; 29; 39; 50 and 52:1
  • Output torque: from 90 to 1700 Nm
  • Output hollow shaft:
    • Interface according EN ISO 9409-1-A
    • clamp connection

    generously dimensioned and supported for high additional forces

  • Highest rigidity
  • Highest precision
  • ATEX design available


Gearing: Internal gear design was optimized to provide an angular backlash of less than 1 arc-minutes at assembly, with the option of “in the field” adjustable backlash if necessary.

Bearings: Input angular contact bearings for high input speed, and robust output tapered-roller bearings for high radial and axial load capacity.

Housing: Light weight aluminum housing for good heat dissipation, with integral input flange for servo motors and universal mounting on any face.

Output: The output bore is available with a compression-type hub or a ISO 9409-1 flange (see dimension pages). We offer a line of accessories to adapt these outputs to straight shafting, Rack & Pinions, or other gearing types.

Overview

Size Ratio i T2max. (Nm) Efficiency @ 1500rpm
50 mm 4.75 820 93%
6.75 600 90%
9.25 410 88%
14.5 520 84%
19.5 370 83%
29.0 450 76%
39.0 300 70%
50.0 220 63%
63 mm 4.75 1500 93%
6.75 1120 90%
9.25 750 88%
14.5 900 84%
19.5 750 83%
29.0 970 76%
39.0 670 70%
50.0 450 63%
80 mm 4.75 3000 93%
6.75 2100 90%
9.25 1650 88%
14.5 1950 84%
19.5 1500 83%
29.0 1800 76%
39.0 1270 70%
50.0 900 63%
100 mm 4.75 4950 93%
6.75 3450 90%
9.25 2850 88%
14.5 3070 84%
19.5 2700 83%
29.0 3450 76%
39.0 2470 70%
50.0 1650 63%

Manuals

HT50 = 50mm Centre Distance


HT63 = 63mm Centre Distance

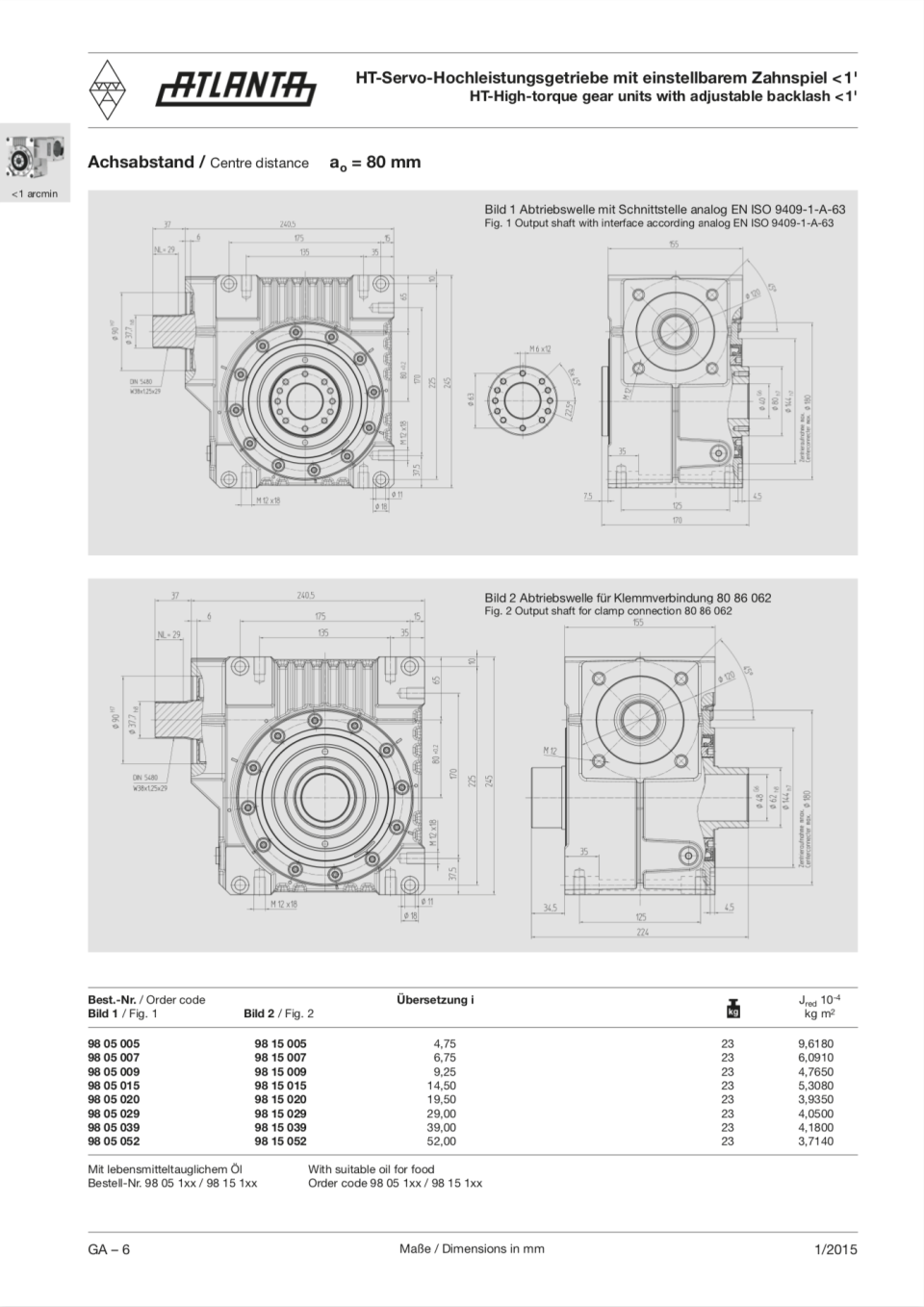

HT80 = 80mm Centre Distance


HT100 = 100mm Centre Distance


Downloads

Calculation and selection document

Atlanta CAD Drawings
