Neugart PLE

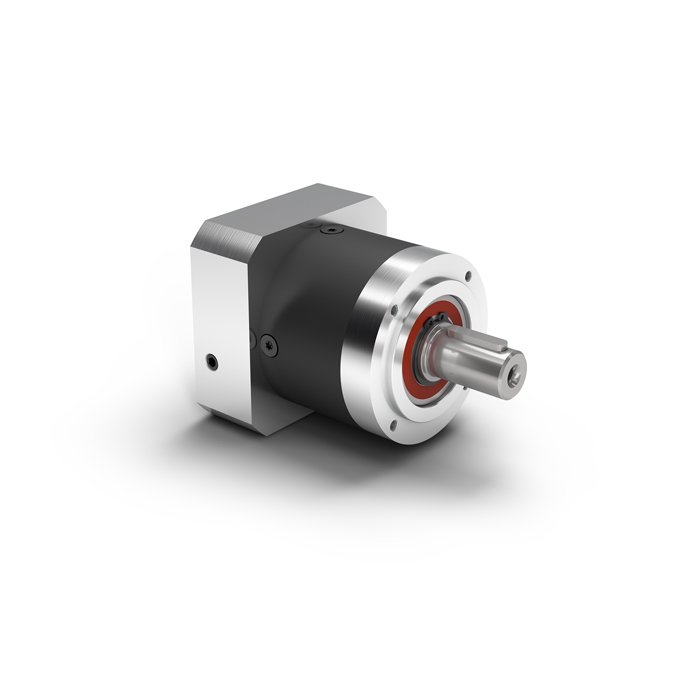

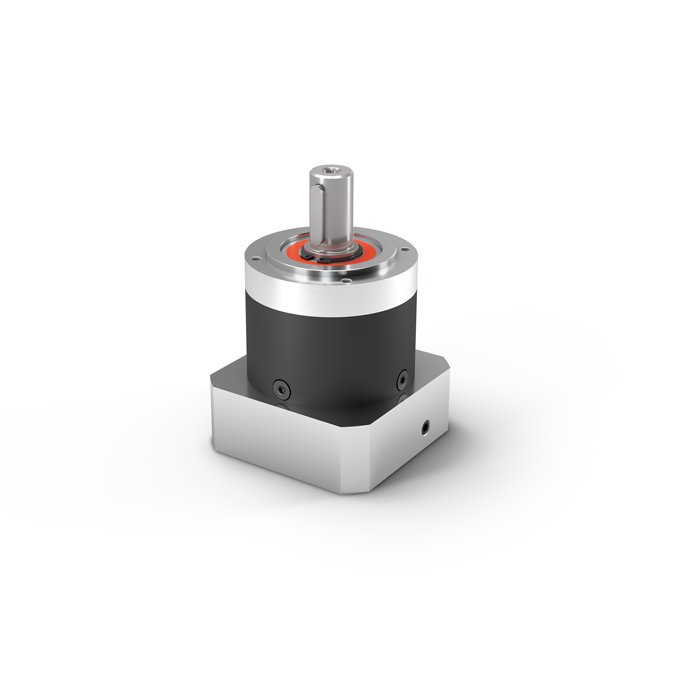

The Economy Planetary Gearbox

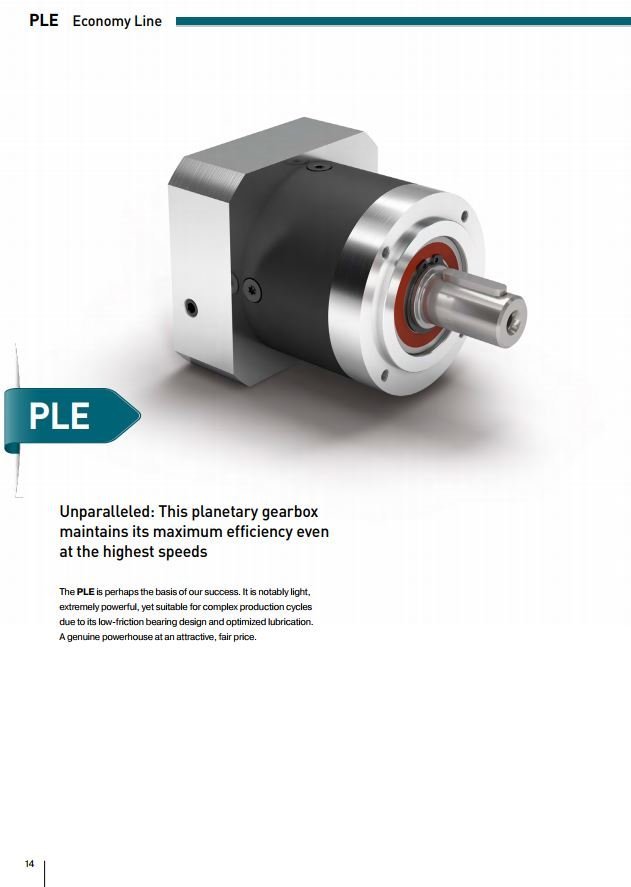

The PLE is perhaps the basis of our success. It is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, fair price.
Available in five sizes: 40, 60, 80, 120 and 160
Features
- The highest dynamics in multiple axis systems
- Unrivalled price-performance ratio
- Low heat generation at highest speeds
- For any mounting position
- Lifetime lubrication for maintenance-free operation
- Precise gearing
Light, but powerful
The PLE excels with its above-average weight to torque ratio, and it is 25% lighter than comparable conventional drives. You accordingly benefit from the highest dynamics needed for multiple axis systems
Efficient and reliable
High performance at a fair price: This principle also applies to our PLE planetary gearbox. It is powerful, yet efficient, and delivers a high performance for attractive acquisition costs
Low heat generation

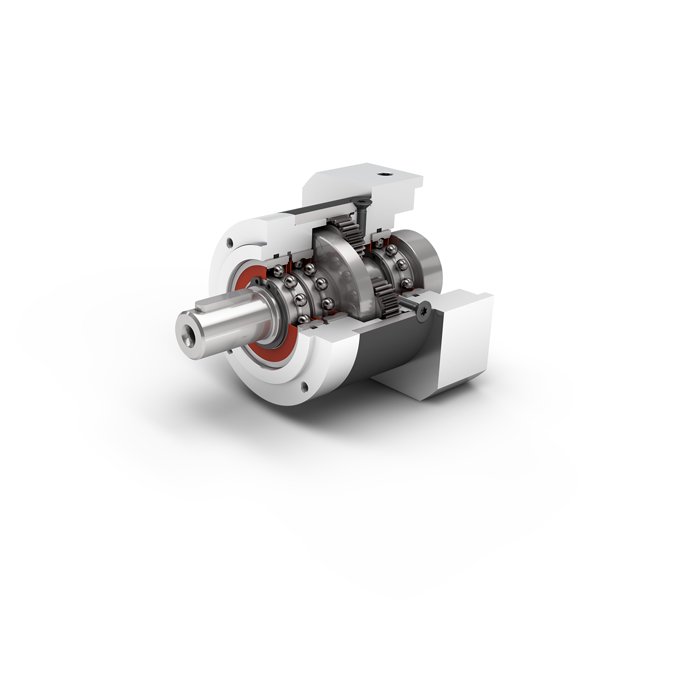

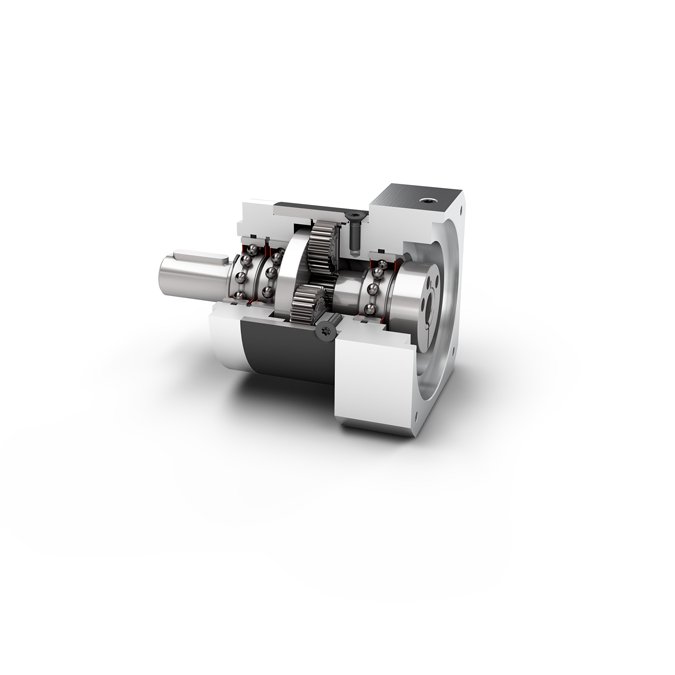

Even in extreme situations, the PLE will never let you down thanks to its lowfriction bearing design and optimized lubrication. The low heat generation allows a continuous high speed without sacrifice to performance.
