The IPC is complemented by an industrial display unit. The Beckhoff Control Panels and Panel PCs are the visual front end for machines or plants.Spatial separation of display/control unit and control computer offers maximum flexibility. Appealing design, robustness and suitability for industrial applications were important criteria in the development of the Control Panel series, which comes with display sizes between 5.7" and 24".

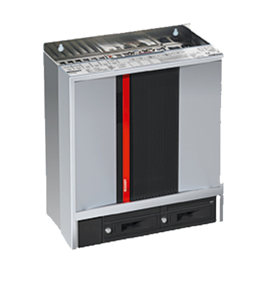

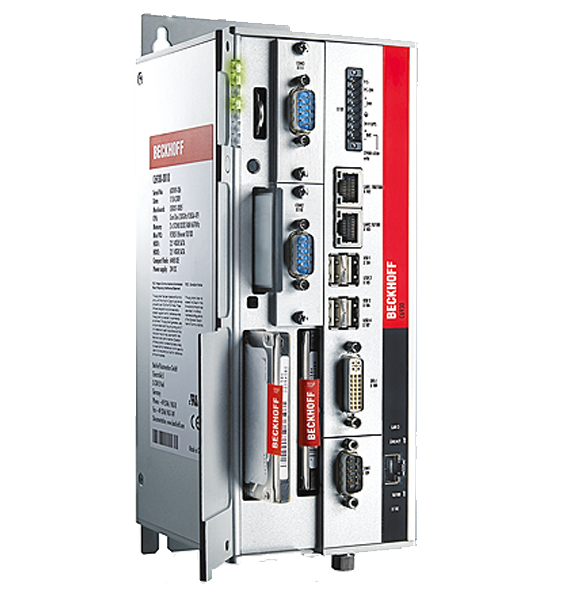

See below for the range of Industrial PCs we can supply:
highest performance PCs with Intel® Celeron® up to Intel® Core™ i7 processors
PCs with low power consumption with Intel® Mobile processors
open standards following the norm ATX
components carefully tested to ensure appropriateness for industrial applications
appealing industrial design housings
easy access to PC components
Individual housing construction allows optimum adaptation to controller requirements.
integration of electromechanical buttons, switches, scanner, handwheel and other components in the Control Panel
All displays can be fully tailored to customer requirements: options include visual adaptation to the corporate design or application of a customer logo, customised front membranes, a wide range of special mechanical keys, emergency stop switches, card scanners or RFID readers.
The Control Panel housing is made from high-quality solid aluminium and is suitable for protection class IP 65, as usually required in industrial environments. Thorough development and integration of electronic modules, displays, touch screens and front membranes ensure high availability and reliability during operation. All Beckhoff Control Panels can optionally be operated as:
stand-alone device (Panel PC with Windows XP or Embedded Standard and Ethernet panel with Windows CE);
DVI/USB Extended Control Panel for direct or indirect operation at the PC (distance up to 50 m)
CP-Link 3 (Panel PCs connected to the host PC via Ethernet).
