C6670 | Control cabinet industrial server

Many-core control

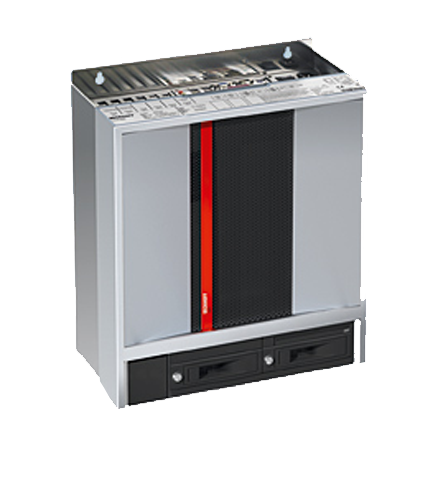

The C6670 industrial server is designed for installation in control cabinets. The C6670 and a Beckhoff Control Panel with DVI and USB connections make an ideal combination, representing a powerful platform for machine construction and plant engineering applications with the TwinCAT automation software.

The C6670 features two hard drive removable frames, which, together with the on-board RAID controller, form a RAID 1 system with two mirrored hard disks or SSDs. This ensures high data security. Hard disks or SSDs which failed can easily be exchanged during operation.

The device can be equipped with a multi-DVD drive. Card holders for the plug-in cards ensure resistance to impacts and vibrations. The C6670 offers convenient access to drives, memory and plug-in cards. The industrial server is supplied with a 100 to 240 V AC full-range power supply unit.

A type plate is located on the top of the front cover, giving detailed information about the server configuration.
