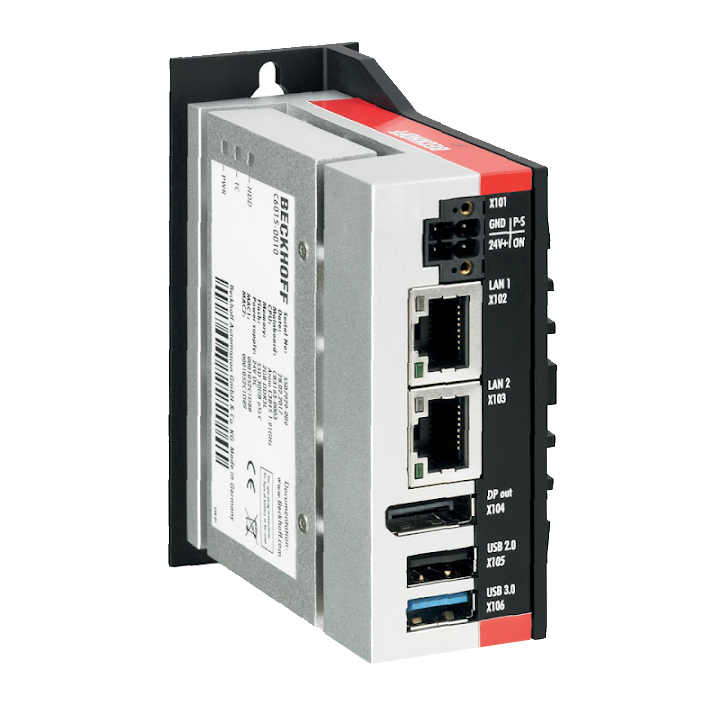

C6015 | Ultra compact Industrial PC
Extremely space-saving & flexible
With universal multi-core support, the C6015 can be used simultaneously for high-performance automation, visualisation and communication applications. Its flexible installation options with virtually free orientation of the PC allow various installation scenarios, even in the tightest of spaces. Despite passive cooling, the C6015 is suitable for a temperature range up to +55 °C.
Moreover, with a mounting space of just 82 x 82 x 40 mm, it is more compact than the previous C6905 series IPCs by a factor of three. With 30 GB 3D MLC M.2 SSD storage and Windows Embedded Compact 7 operating system, it is fully operational in the basic configuration. Windows 7 or Windows 10 operating systems are optionally available.
The C6015-0010 Industrial PC represents the most compact IPC entry-level class in the Beckhoff portfolio, and it is considerably less expensive than the currently most affordable Beckhoff x86 PC, enabling price-savings of 25 % or more (depending on the configuration).
| Variants | Processor | Available |
|---|---|---|
| C6015-0010 | Intel® Atom™, 1 Core (TC3: 40*), Intel® Atom™, 2 Cores (TC3: 40*) or Intel® Atom™, 4 Cores (TC3: 50*) | Yes |
| Housing | Fanless industrial PC for space-saving control cabinet installation |
| Mounting plate on the rear wall | |
| All connectors are on the same level | |
| Flexible mounting mechanism for the free alignment of the connecting area | |
| Aluminium zinc die-cast housing | |
| Status LEDs | |
| Lithium battery is easily accessible | |
| 1 slot for one M.2 SSD easily accessible | |
| Passive, fanless cooling with one-sided cool plate | |
| 5 cm (2") free space on top and bottom of the PC is necessary for air circulation | |
| Protection class IP 20 | |
| Operating temperature 0…55 °C | |
| Compact dimensions (W x H x D) 82 x 82 x 40 mm (3.2" x 3.2" x 1.6") without mounting plate |
| Features | Intel® Atom™ E3815, 1.46 GHz, 1 core (TC3: 40) |
| Compact motherboard for Intel® Atom™ | |
| 2 GB DDR3L RAM, expandable ex factory to 4 GB | |
| Graphic adapter integrated inside the Intel® processor, 1 DisplayPort | |
| On-board dual Ethernet adapter with 2 x 100/1000BASE-T connector | |
| 30 GB M.2 SSD, 3D flash, extended temperature range | |
| 1 USB 3.0 port and 1 USB 2.0 port | |
| 24 V DC power supply | |
| Microsoft Windows Embedded Compact 7, English |
