Siemens SIPEX

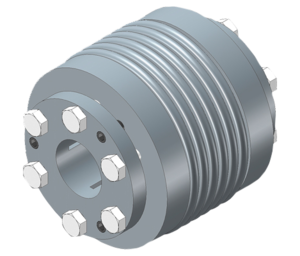

SIPEX couplings are made up of two aluminium hubs and stainless steel bellows. Their metal bellows compensate for axial, radial and angular misalignment with only low restoring forces. They cover a torque range from 0.5 to 5,000 Nm.

SIPEX Couplings are almost completely maintenance and wear-free with an exceedingly low moment of inertia. They are very compact, suitable for a range of installation requirements due to availability of different hub versions and very easy to install.

Advantages and services:

  • A large variety of design options for maximum flexibility
  • Temperature range BIPEX-S: -50 °C to +120 °C
  • Temperature range SIPEX: -30 °C to +120 °C (250 °C feasible)
  • Rotational speed BIPEX-S: max. 47,500 rpm
  • Rotational speed SIPEX: max. 15,000 rpm
  • Easy to install
  • Torsionally stiff
  • Backlash-free
  • Maintenance-free (SIPEX)
  • Wear-free (SIPEX)
  • Compensation for shaft misalignment
  • Low moment of inertia
  • Suitable for highly dynamic applications

Application examples

  • Positioning drives
  • Stepping motors
  • Linear units
  • Machine tools
  • Packaging machines
  • Textile machines
  • Filling plants
  • Production lines
  • Material handling machines
  • Printing machines
  • Wood processing plants

FLENDER Couplings Configurator

Simple configuration: online in X.CAT NG.

Please see below for the range of SIPEX couplings we supply...

(Please note that we are able to supply a wider range of couplings than displayed on the website. Please get in touch if your application requires a different Type.)
