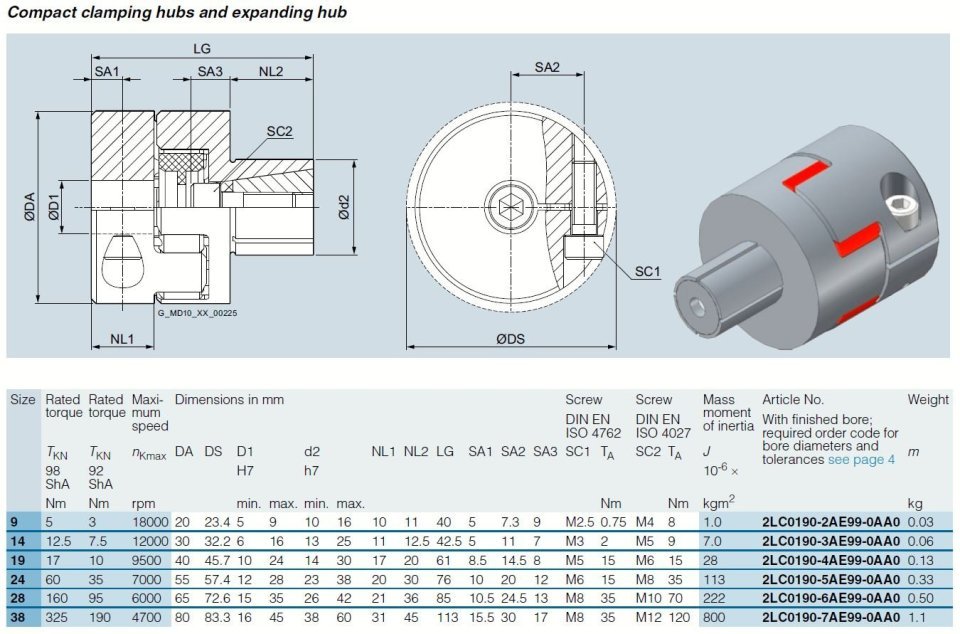

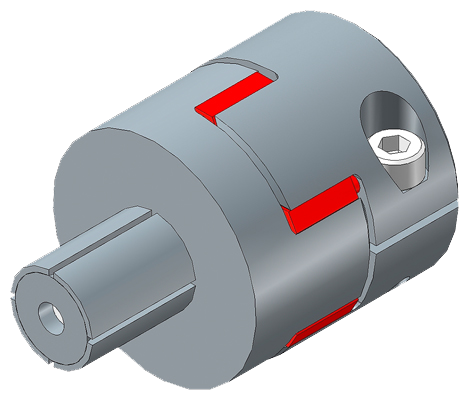

BCS Compact Clamping Hubs and Expanding Hub Elastomer Jaw Coupling 3 - 190 Nm



A hollow shaft can be connected to the expanding hub. The bore for connection the expanding hub must have tolerance H7.

Cam ring made of polyurethane with Shore hardness 98 ShA as standard. For other hardness grades, see (Downloads) tab.

Weights and mass moments of inertia apply to maximum bore diameters.

Overview


Brochures



Downloads


FLENDER Couplings Configurator

Simple configuration: online in X.CAT NG.


 *More info on page 24 of the brochure
