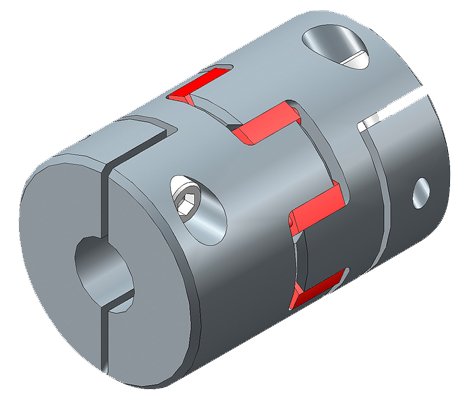

BGG Clamping Hub Elastomer Jaw: 0.5-310 Nm


The slotted clamping hub allows a frictionally engaged connection to the input and output shaft. A single tightening screw per hub ensures easy assembly.

The maximum torques that can be transmitted by the clamping connection are listed on the table below (Manuals).

A keyway according to DIN 6885-1 can be selected additionally as an option.

Cam ring made of polyurethane with Shore hardness 98 ShA as standard (red cam ring)

For other hardness grades, see (Downloads) Below.

Weights and mass moments of inertia apply to maximum bore diameters.

Overview

Brochures

Manuals

Downloads


FLENDER Couplings Configurator

Simple configuration: online in X.CAT NG.


                       *More information located on page 24 of the brochure
