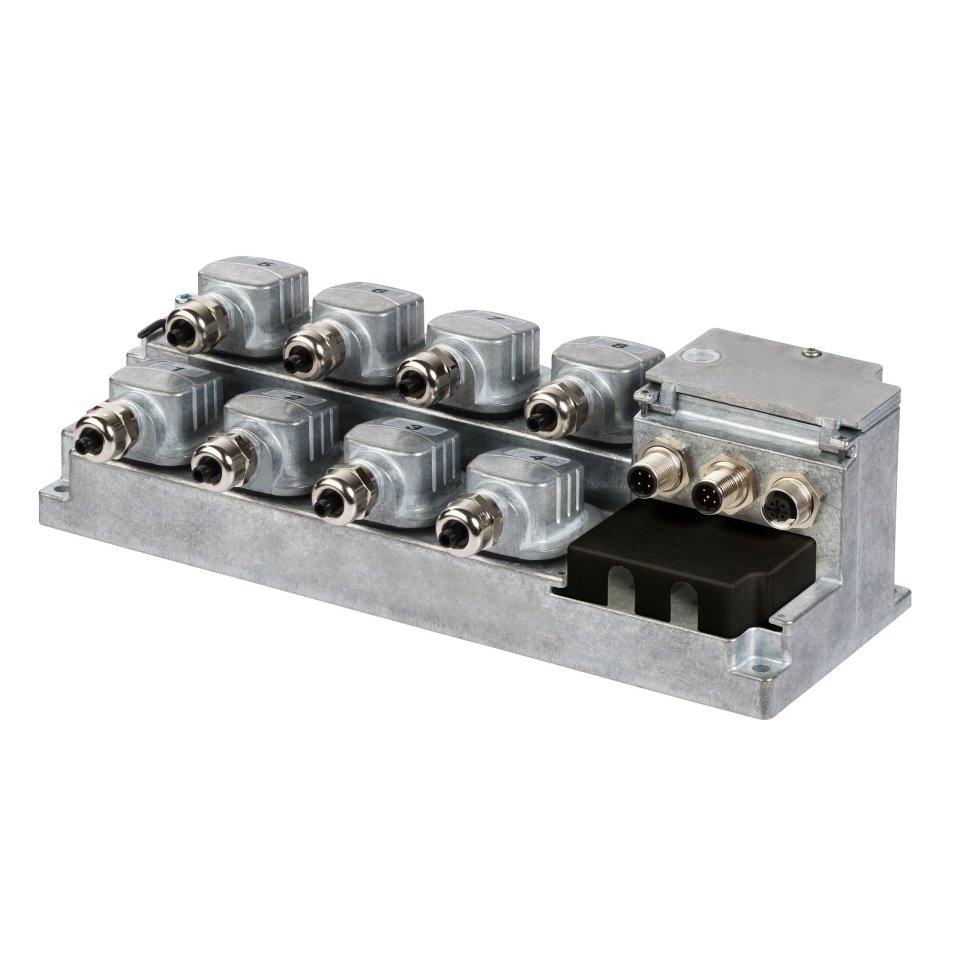

HIPERDRIVE Hub Positioning System connecting station
Hub for Hiperdrive Positioning systems HDA and PSE 441
Special features
- PROFIBUS DP, EtherCAT, PROFINET or EtherNet/IP data interface
- Communication between Hub and HDA 70 / PSE 441 via RS 485 data interface
- Robust die-cast zinc housing with IP 65
- Galvanic separation between control unit and motor
- Fuses to protect the connected drives
The HIPERDRIVE Hub is the central connecting station for up to eight HIPERDRIVE units (HDA 70 or PSE 441). The bus interface and control module in the hub allows all the connected drives to be activated via just one address. In addition, the HIPERDRIVE Hub distributes the operating voltage for the drives. This means that only one cable (max. length 20m) is now required for connecting a drive rather than the two or three previously needed. Both data and power for the drives are transmitted via the same cable. For the HIPERDRIVE Hub itself, alongside the fieldbus and 24 V motor supply voltage, only a 24 V auxiliary voltage is required for the bus interface and control module.
Catalogue excerpt / Data sheets
| Power supply | 24 VDC ± 15 % |
| Power consumption (control unit) | 300 mA
|
| Data interface | PROFIBUS DP, EtherCAT, PROFINET, EtherNet/IP |
| Protection class | IP 65 |
