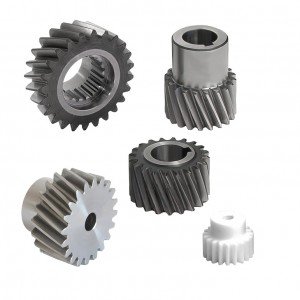

Atlanta Pinions

Series 24:

Series 79 with spline profile according DIN 5480:

Series 21/23:

Series 22 POM:

Available Pinion Styles

Helical Tooth

These pinions have the teeth at an angle (19º 31' 42") for increased load capacity and quiet operation.

Straight Tooth

These pinions have the teeth perpendicular to pinion side, and are traditionally known as "spur".

"S+L Individuell"

At these pinion are only the teeth hardened and ground. Processing on the bore and hub is additionally possible.

Pre-Load Pinion Shaft

These pinions have two pinion halves which are spring-loaded against each other to provide zero backlash.

Pinions with ground teeth and spline profile

These pinions have a spline profile according DIN 5480 for increased load capacity.

Pinions for interface acc. EN ISO 9409-1-A

These pinions were designed for mounting directly to ISO 9409-1 flanged reducers.

Series	Tooth	Description & Material	Module Available	Tooth Treatment	Quality
06	straight	soft stainless X8 CrNiS 18 9	1; 1,5; 2; 3	none	8
07	straight	soft Ck45	5 & 10 mm pitch	none	8
20	straight & helical	pinion shaft for key connection case hardening steel	1,5; 2; 3; 4; 5; 6	case-hardened	6
21	straight	soft C45	1; 1,5; 2; 2,5; 3; 4; 5; 6; 8; 10; 12	none	8
21	helical	soft C45	1,5; 2; 3; 4; 5; 6; 8; 10; 12	none	8
22	straight	plastic	1; 1,5; 2; 2,5; 3	none	9
23	straight	cast iron	1; 1,5; 2; 2,5; 3; 4; 5; 6	non	8
24	straight	hardened & ground 16MnCr5	2; 3; 4; 5; 6	case-hardened & ground	6
24.98	straight	hardened & ground for rework 16MnCr5	2; 3; 4; 5; 6	carburized, teeth induction hardened	6
24	helical	hardened & ground 16MnCr5	1,5; 2; 3; 4; 5; 6; 8; 10	case-hardened & ground	6
24.99	helical	hardened & ground for rework 16MnCr5	2; 3; 4; 5; 6; 8	carburized, teeth induction hardened	6
24.0 24.7	straight	hardened & ground 16MnCr5	5; 10 & 13,33 mm Teilung	case-hardened & ground	7
74	helical	pre-load pinion shaft case hardening steel	2; 3; 4; 5; 6; 8	case-hardened & ground	7
78	helical	hardened & ground for EN ISO 9409-1-A interface 16MnCr5	2; 3; 4; 5	case-hardened & ground	5
78	helical	TR-pinion hardened & ground wirth flange for EN ISO 9409-1-A interface 16MnCr5	2; 3; 4; 5; 6; 8	case-hardened & ground	5
78	straight	TR-pinion hardened & ground wirth flange for EN ISO 9409-1-A interface 16MnCr5	2; 3; 4; 5; 6; 8	case-hardened & ground	5
79	helical	hardened & ground with spline profile acc. DIN 5480	1,5; 2; 3; 4	case-hardened & ground	5
