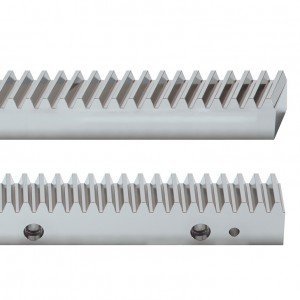

Atlanta Precision Racks: PR


Quality Class 8

Technical Data:

  • Heat-treatable, bright steel according ATLANTA-Standard performance
  • Teeth hardened with the ATLANTA high
  • hardening process and ground
  • Total pitch error GTf/1000 ≤0,060mm
  • 19°31'42" helical and straight tooth system
  • Module 2 to 5
  • Max. feed force per pinion contact up to 64,5 kN


  • Bright steel, backside machined
  • Milled teeth, quenched and tempered
  • Total pitch error GTf/1000 ≤0,100mm
  • 19°31'42" helical and straight tooth system
  • Module 2 to 4
  • Max. feed force per pinion contact up to 27 kN




Stainless Steel Round Racks


Quality Class 8

Technical Data:

  • Material: X8 Cr Ni 18-9
  • Stainless
  • Profile drawn
  • Total pitch error GTf/1000 ≤ 0,015mm
  • Module 1 to 3
  • Length 1000 mm
  • Max. feed force per pinion contact up to 5,6 kN



Overview

Helical Tooth Straight Tooth
Class Rack Type Quality Total pitch
error
(±µm/m)
Module Max. length (mm) Max. feed force per pinion contact (kN) Module Max. length (mm) Max. feed force per pinion contact (kN)
Precision Rack (PR) Teeth Hardened & Ground 8 60 2 2000 13.5 Series 39 Datasheet2 2011 12.0 Series 34 Datasheet
3 2000 24.5 3 2036 22.0
4 2000 44.0 4 2011 39.0
5 2000 64.5 5 2011 57.5
Milled teeth & Quenched and tempered 8 100 2 2000 8.0 Series 38 Datasheet   2 2011 7.0 Series 34 Datasheet
3 2000 14.0 3 2036 12.0
4 2000 27.0 4 2011 23.0

Manuals

Operation and Maintenance Instruction for Racks & Pinions:

Load table for Rack & Pinion Drives Helical Toothed system:


Load table for Rack & Pinion Drives Straight Toothed system:
