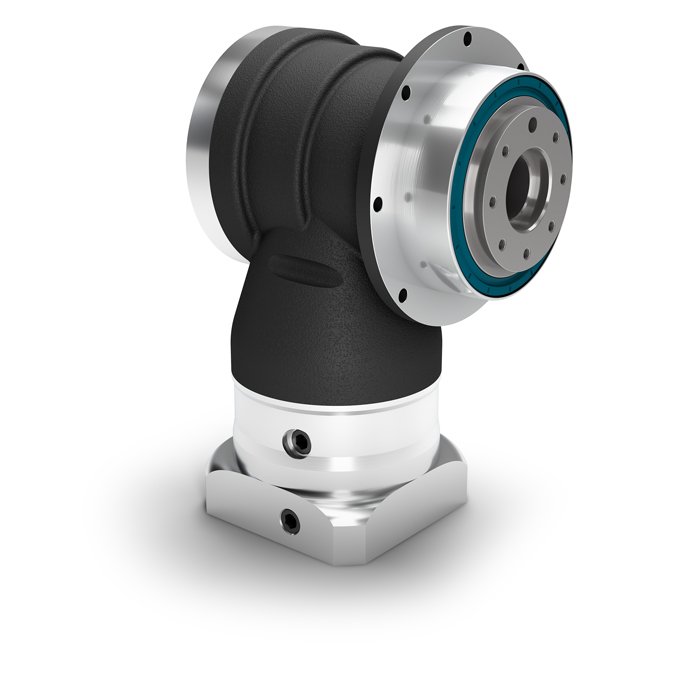

Neugart WPSFN
Precision right angle gearbox

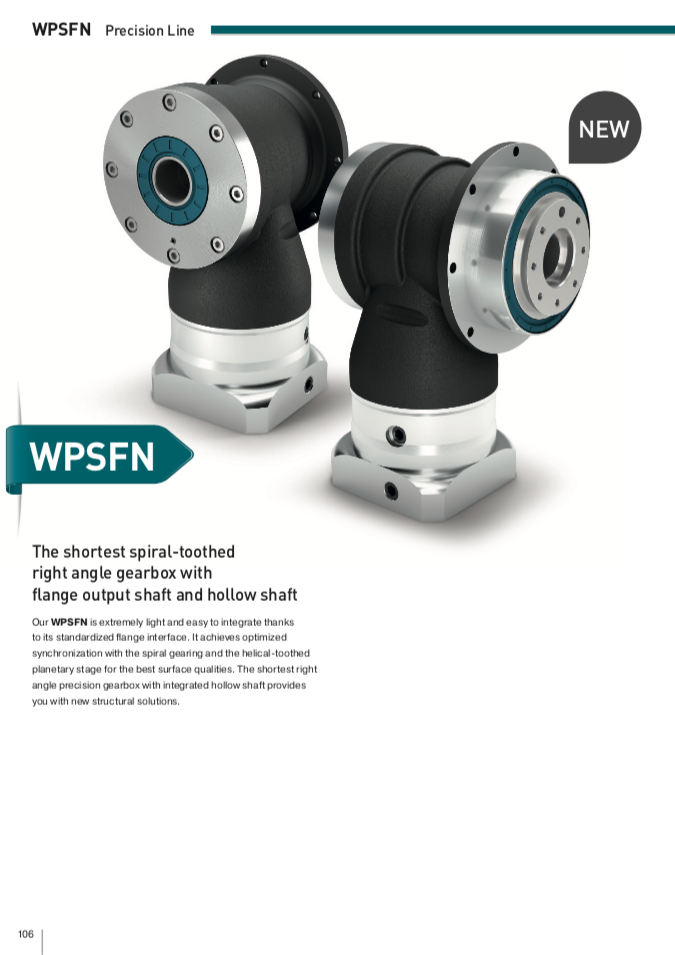

Our WPSFN is extremely light and easy to integrate thanks to its standardised flange interface. It achieves optimised synchronisation with the spiral gearing and the helical-toothed planetary stage for the best surface qualities. The shortest right and precision gearbox with integrated hollow shaft provides you with new design solutions
Available in four sizes: 64, 90, 110 and 140
Features
- Space-saving thanks to minimal installation height
- Greater quality due to high-class gearing
- Standard flange interface with hollow shaft
- Perfectly sealed
- Particularly quiet drive
- For any mounting position
Space saving thanks to minimal installation height
The WPSFN is the shortest right angle precision gearbox. Depending on the frame size, you may use up to 25% less installation space than with comparable right angle gearboxes with spiral gearing.
Greater quality due to high class gearing

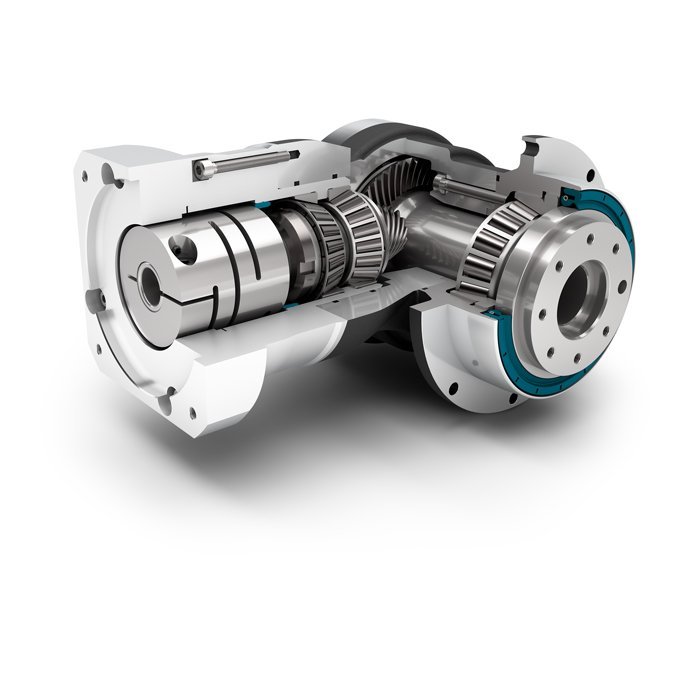

Thanks to its spiral gearing the WPSFN achieves optimal, homogeneous synchronism. The two-stage right angle precision gearbox operates with extremely low vibration with the helical-toothed planetary stage. As a result, your machine produces the highest surface quality and the best prints.

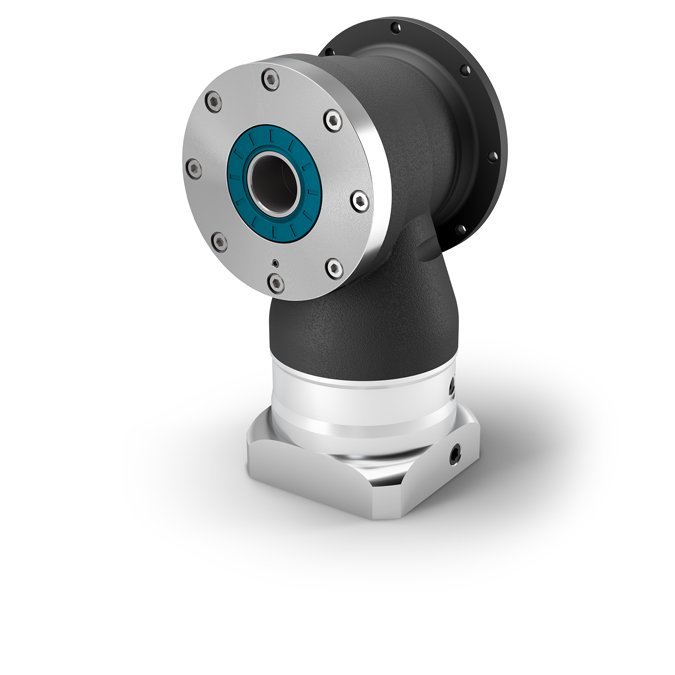

Standard flange face interface with hollow shaft
The WPSFN right angle precision gearbox with its EN ISO 9409-1 standard flange interface allows you to quickly integrate drive components such as a flanged pinion or turntable. Discover new design solutions for flexible line routing with the hollow shaft integrated in the single-stage WPSFN.
