Siemens ELPEX Highly Flexible Couplings

Due to their low torsional rigidity and good damping properties, highly flexible Siemens couplings are excellently suitable for connecting non-uniformly working machines. They are preferably used in periodically exciting systems, such as drives with internal combustion engines or piston compressors. Because of the large elastomer volume, comparably large shaft misalignments can be compensated.

Owing to its low torsional stiffness and damping property the ELPEX coupling is very well suitable for connecting machines with a considerably non-uniform torque characteristic. Types with a fail-safe device between the flexible rings ensure emergency operation if the flexible rings are destroyed. ELPEX couplings are available in 12 sizes for torques from 1,600 Nm up to 90,000 Nm

The ELPEX couplings made from grey cast iron (GG-25)or steel are available in nine sizes for torques up to 90,000 Nm. The flexible rings are made of high-quality natural rubber in which the fibre inserts, which transmit the torque, are vulcanized.

Advantages of the product

  • Highly flexible coupling without circumferential backlash for large shaft misalignments
  • Suitable for high dynamic loads
  • Good damping properties
  • Available as shaft and flange coupling
  • Designs according to API 610 and API 671 available

Examples of application:

Drives with periodically exciting systems, such as

  • Internal combustion engines
  • Piston compressors
  • Piston pumps

Drives subjected to high shock loads or large shaft misalignments, for example in

  • Compressors
  • Excavators
  • Shredders

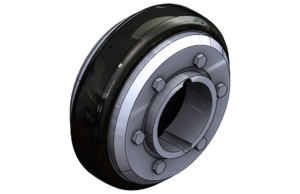

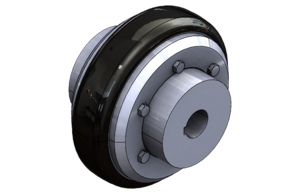

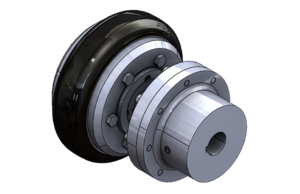

Please see below for the range of ELPEX-B couplings we supply...

(Please note that we are able to supply a wider range of couplings than displayed on the website. Please get in touch if your application requires a different Type.)
