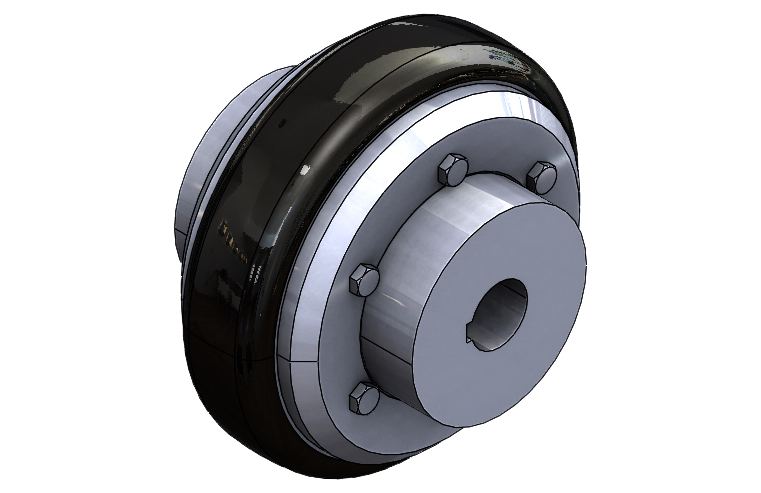

Siemens Highly Flexible Couplings: ELPEX-B Series Type EBWN
The ELPEX-B Couplings are available as a catalogue standard in 15 sizes with a rated torque of between 24 Nm and 14500 Nm. The coupling can be fitted with elastic tires made of natural rubber for ambient
temperatures of -50c to +50c and with elastic tires made of chloroprene rubber for -15c to +70c. The chloroprene rubber tyre is marked FRAS: (Fire Resistant and Anti-Static).
The EBWN coupling has a shaft-shaft connection with drilled and grooved hubs.
Please email us if you have an enquiry or are interested in this coupling type.
