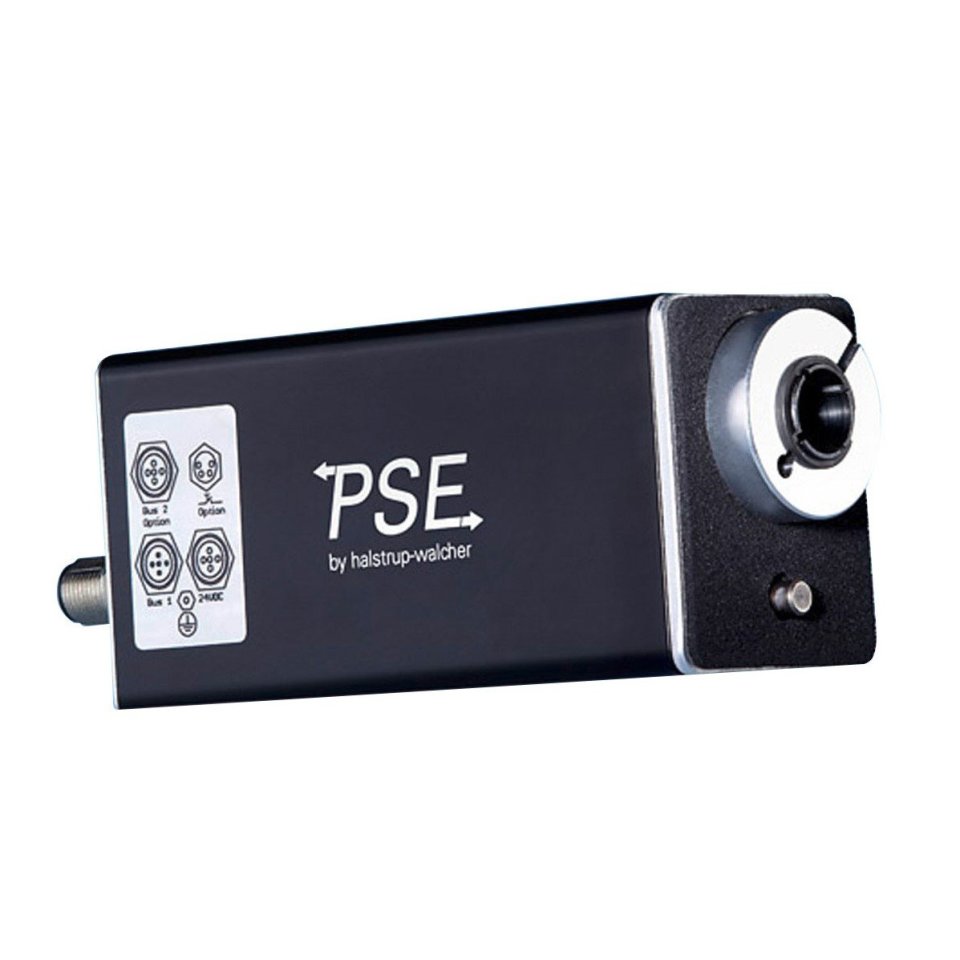

PSE 31_/33_-14 Positioning System

The positioning systems PSE 31_/33_-14 are intelligent, compact solutions for the automatic adjustment of auxiliary and positioning axes comprising an EC-motor, gear, controller, measuring system and CANopen, PROFIBUS DP or Ethernet-bus interface. The integrated electronic control feature frees up the machine´s central control unit. No external motors, proximity or limit switches are required. The absolute measuring system at 250 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position at the output shaft ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.
Address and baud rate switches simplify start-up, even without the knowledge of the control software (not for IO-Link). The instruments can be mounted on a spindle using the hollow shaft without the need for an additional coupling. Two bus connections are available for looping the bus signal (not for IO-Link).
A holding brake (optional) holds the position even with no supply voltage. Set-up mode or manual positioning permits the connection of jog keys (optional, not for IO-Link).
