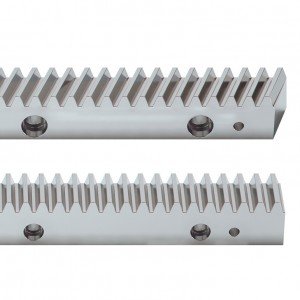

Atlanta Ultra High Precision Racks: UHPR
Q3 - Quality Class 3
Technical Data:
- Heat-treatable steel according ATLANTA-Standard
- Teeth hardened with the ATLANTA high performance
hardening process and ground - Ground on all sides after hardening
- Signed with effective total pitch error (20°)
- Total pitch error GTf 1000 ≤ 0,012mm
- 19°31'42" helical and straight tooth system
- Module 5 to 12
- Length up to 1000mm
- Max. feed force per pinion contact up to 409,0 kN
Q5 - Quality Class 5
Technical Data:
- Case hardening steel according ATLANTA-Standard
- Teeth case hardened and ground
- Ground on all sides after hardening
- Signed with effective total pitch error (20°C)
- Total pitch error GTf/1000 ≤ 0,026mm
- 19°31'42" helical and straight tooth system
- Module 3 to 6
- Length 1000 mm
- Max. feed force per pinion contact up to 131,5 kN
Overview
| Helical Tooth | Straight Tooth | ||||||||||
| Class | Rack Type | Quality |
Total pitch error (±µm/m) |
Module | Max. length (mm) | Max. feed force per pinion contact (kN) | Module | Max. length (mm) | Max. feed force per pinion contact (kN) | ||
| Ultra High Precision Rack (UHPR) | Teeth Hardened & Ground | 3 | 12 | 5 | 1000 | 76.5 |
Series 48 Datasheet |
5 | 1005 | 62.0 |
Series 46 Datasheet |
| 6 | 1000 | 109.0 | 6 | 1018 | 89.0 | ||||||
| 8 | 960 | 191.0 | 8 | 1005 | 156.0 | ||||||
| 10 | 1000 | 287.5 | 10 | 1005 | 234.0 | ||||||
| 12 | 1000 | 409.0 | 12 | 1018 | 335.5 | ||||||
| Teeth Case Hardened & Ground | 5 | 26 | 3 | 1000 | 31.0 |
Series 29 Datasheet |
3 | 1018 | 25.5 |
Series 28 Datasheet |
|
| 4 | 1000 | 60.0 | 4 | 1005 | 49.0 | ||||||
| 5 | 1000 | 92.0 | 5 | 1005 | 75.0 | ||||||
| 6 | 1000 | 135.5 | 6 | 1018 | 107.0 | ||||||
Manuals
Operation and Maintenance Instruction for Racks & Pinions:
Load table for Rack & Pinion Drives Helical Toothed system:
Load table for Rack & Pinion Drives Straight Toothed system:
