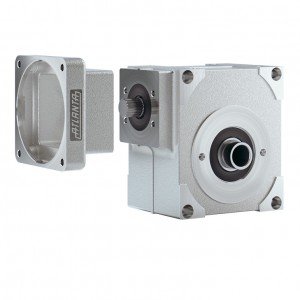

Atlanta Economy (E) Servo Worm Reducers

This standard range of Servo-Worm Reducers are perfect for use in applications that demand good performance, positioning and repeatability. They were specifically developed for use with state-of-the-art servo motor technology, providing tight integration of the motor to the unit. Angular backlash of less than 5 arc-minutes is provided standard.

They are available in five sizes (32 mm to 100 mm center distance) with input speeds up to 5,000 rpm, reduction ratios from 4.75 to 52:1 and output torque capacities up to 590 lb.ft. A wide range of motor couplings and mounting flanges are available for assembly to virtually all servo motors, and the hollow bore output can be used to mount output shafts, pinion shafts, or other drive elements.

Typical applications for these reducers include precision rotary axis drives, traveling gantries & columns, material handling axis drives and electronic line shafting. Industries served include Material Handling, Automation, Aerospace, Machine Tool and Robotics.

The following are typical features of our E-Servo Gear Units:

Backlash: <5 arcmin
5 sizes: centre distance 32, 50, 63, 80 and 100mm
8 ratios: 4.75; 6.75; 9.25; 14.5; 19.5; 29; 39; 50 and 52:1
Output torque: from 11 to 1100 Nm
Output hollow shaft:
- key connection
- clamp connection
generously dimensioned and supported for high additional forces
High rigidity
High precision
ATEX design available

Gearing: Internal gear design was optimized to provide an angular backlash of less than five arc-minutes.

Bearings: Input angular contact bearings for high input speed, and robust output tapered-roller bearings for high radial and axial load capacity.

Housing: Light weight aluminum housing for good heat dissipation, with integral input flange for servo motors and universal mounting on any face.

Output: The output bore is available with a keyway or a compression-type hub (see dimension pages). We offer a line of accessories to adapt this output to straight shafting, Rack & Pinions, or other gearing types.

Overview

Size a	Ratio i	T2max.	Output torque Nm at driving speed
Size a	Ratio i	T2max.	500 min-1	1000 min-1	1500 min-1	3000 min-1	4000 min-1	5000 min-1
32 mm	4.75	135	16	17	17	17	18	18
	6.75	100	14	16	17	17	18	18
	9.25	65	12	14	15	17	18	18
	14.50	85	14	16	17	18	18	18
	19.50	55	12	13	14	16	16	16
	29.00	70	12	14	15	17	17	17
	39.00	50	13	15	16	18	18	18
	50.00	35	11	12	13	15	16	18
50 mm	4.75	550	65	70	70	70	65	61
	6.75	400	56	63	69	69	65	61
	9.25	275	48	54	58	70	70	65
	14.50	350	57	65	70	75	75	75
	19.50	250	45	50	55	65	65	65
	29.00	300	48	55	60	70	70	65
	39.00	200	53	60	65	75	75	75
	50.00	150	42	47	50	60	60	60
63 mm	4.75	1000	170	180	170	145	135
	6.75	750	170	180	170	145	135
	9.25	500	115	130	135	135	126
	14.50	600	165	180	180	170	160
	19.50	500	115	130	135	165	155
	29.00	650	175	205	220	195	185
	39.00	450	140	160	175	190	190
	52.00	300	95	115	125	150	160
80 mm	4.75	2000	420	360	330	280
	6.75	1400	420	360	330	280
	9.25	1100	370	360	330	280
	14.50	1300	450	420	370	295
	19.50	1000	370	400	380	320
	29.00	1200	520	530	490	420
	39.00	850	430	490	480	410
	52.00	600	240	275	300	330
100 mm	4.75	3300	880	750	685	580
	6.75	2300	830	720	660	580
	9.25	1900	830	720	660	580
	14.50	2050	930	810	720	620
	19.50	1800	900	810	720	620
	29.00	2300	1150	1010	850	800
	39.00	1650	1080	1000	900	780
	52.00	1100	760	850	785	680
