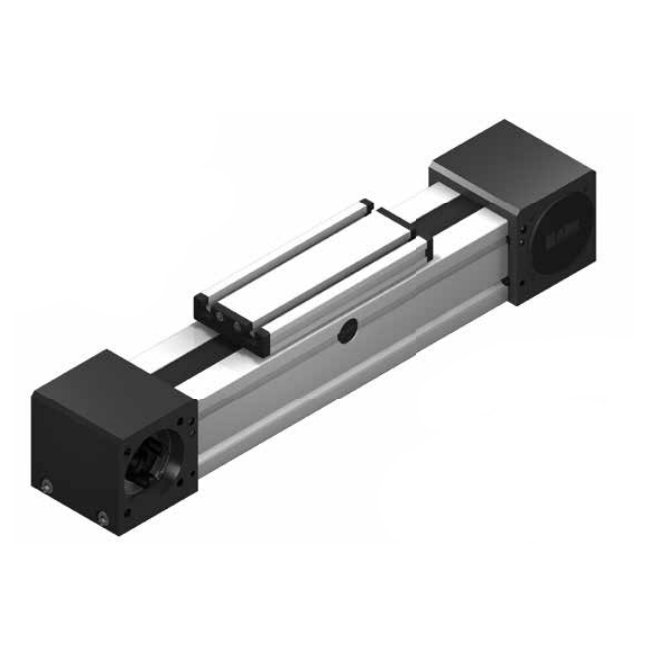

Mechanical linear unit with internal rail guide for higher moments. The system is driven by a toothed belt.

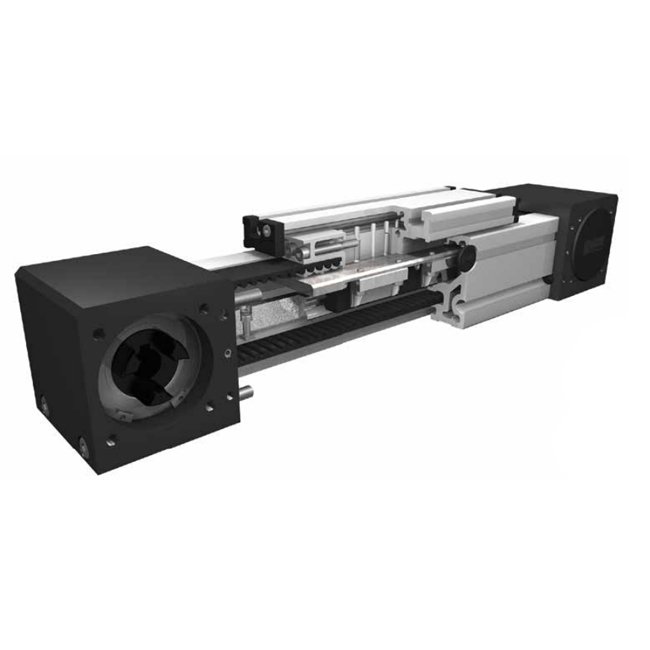

This unit consists of a square aluminium profile with an integrated ball rail. The carriage is moved by a belt drive. Each standard pulley includes one coupling claw on one side.
Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel.
Fitting position: As required. Max. Length 6.000 mm without joints.
Carriage mounting: By T-slots.
Unit mounting: By T-slots and mounting sets. The linear axis can be combined with any T-slot profile

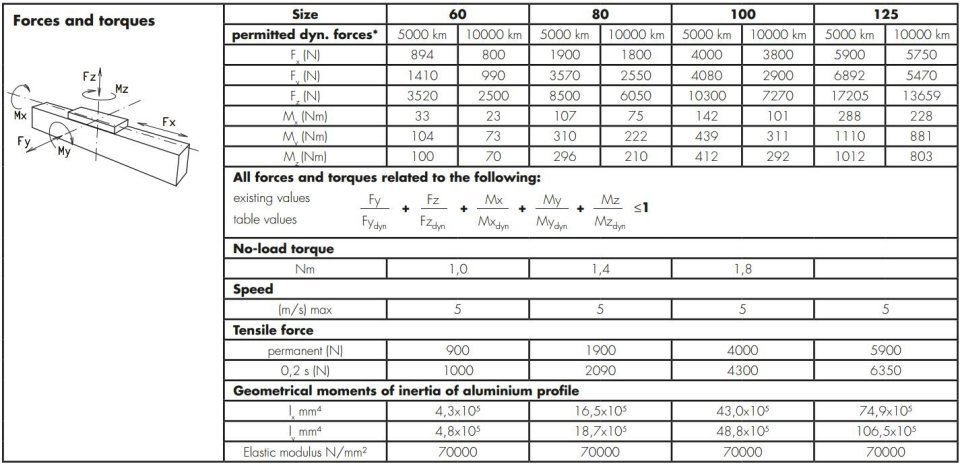

Belt Performance: HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm. Travel speed: max. 6 m/s
Carriage Support: In the standard version, the carriage runs on two runner blocks, which can be adjusted and serviced at a central servicing position. For longer carriages, the number of runner blocks can be increased.
