Siemens Torsionally Rigid Gear Coupling:

Type ZNNV

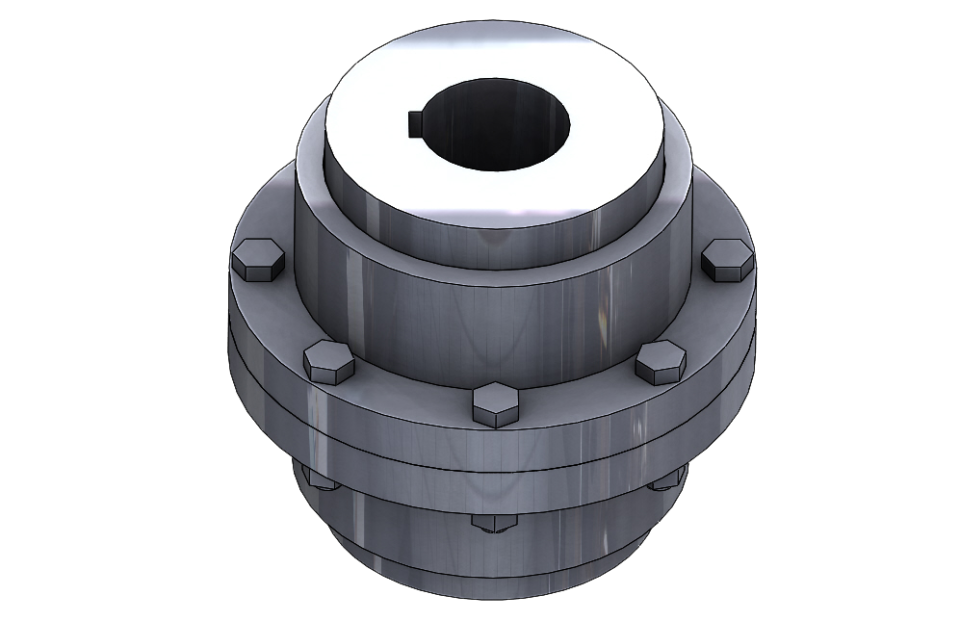

A ZAPEX coupling comprises two hub sections with external teeth which are mounted on the machine shafts. The external teeth engage with a flanged sleeve with corresponding internal teeth. The flanged sleeves are connected via two flanges with close-fitting bolts.

The teeth are lubricated with grease. On the ZAPEX type ZN, O-rings prevent the lubricant from escaping and dirt from entering the tooth space. The parallel keyways must be sealed during assembly to prevent lubricant from escaping.

The ZNNV customised hub design is the Standard Vertical type.

Please email us if you have an enquiry or are interested in this coupling type.
