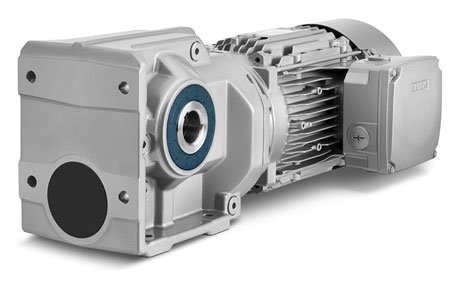

SIMOGEAR Helical Worm Gearboxes


Helical worm gearboxes are the favorably-priced solution for drives with angular geared motors. The efficiency is significantly better than that of pure worm geared motors due to the implementation as helical-worm geared motors.

Due to the worm gear stage, high ratios can be implemented within small envelope dimensions. Further, helical worm geared motors represent an extremely quiet drive solution. Helical worm geared motors represent the most cost-effective solution for angular geared motors in the lower torque range.



Features

  • Economic solution especially for low power ranges
  • High gear ratios
  • Low noise
  • Can be used even in narrow construction space



Mechanical construction

  • Stages: 1 or 2
  • Mounting: foot or flange-mounting versions, torque bracket
  • Shaft: Solid shaft, Hollow shaft, SIMOLOC system


Typical applications

  • Small conveyor belts
  • Transport of packaged goods
  • Rope lifter

Overview

Helical worm geared
motor (2-stage)

Worm geared
motor (1-stage)

Gearbox designation

C29…C89

S09… S29 (1-stage)

Number of gearbox frame sizes

5

3

Rated gearbox torque [Nm]

110…1410

33…116

Gearbox ratio

6,5 … 363 (2-stage)
271 … 23.706 (multi-stage)

5…100

Max. motor power [kW]

7,5

0.55

Brochures
