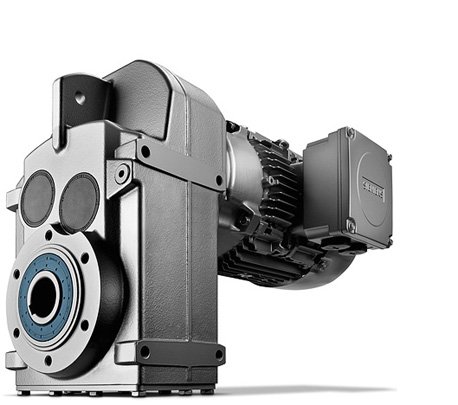

SIMOGEAR Parallel Shaft



Having market conform connecting dimensions, the latest SIMOGEAR gear motors are 1:1 compatible to the current standard. SIMOGEAR gear motors are an economic alternative easy for replacements in already existing installations or to implement in new designs. Surely, the new series of gear motors fit the Siemens DriveTrain in an optimal way.



Features

  • Can be used even in narrow construction space
  • High gear ratios (plug in pinion)
  • Hollow shaft on both sides possible
  • Very energy efficient (efficiencies of 98% per stage)


Mechanical construction

  • Stages: 2 or 3
  • Mounting: foot or flange-mounting versions, housing flange, shaft mounting with torque arm)
  • Shaft: Solid shaft, hollow shaft, splined hollow shaft, hollow shaft with shrink disc


Typical applications

  • Agitator drives
  • Carriage drives
  • Shelf access equipment
  • Vertical conveyor

Overview

Parallel Shaft Geared Motors

Gear Title

FZ29 ... FZ189 (2-stage)
FD29 ... FD189 (3-stage)

Sizes

11

Torque Range [Nm]

150…19.000

Ratio

4 … 70 (2-stage)
58 … 413 (3-stage)
315 … 38.522 (multi-stage)

Motor Power Range [kW]

55
